Product Details:
Payment & Shipping Terms:
|
| Service: | Front | Brightness: | >1,000 Nits |
|---|---|---|---|
| Refresh Rate: | >2880 Hz | Contrast Ratio: | 4000:1 |
| Driving Method: | 1/28 Dynamic Scan | Frame Rate: | 60 Fps |
| Colors: | 281 Trillion | Avarge Power Consumption: | 250 W/ Set |
| Panel: | 28 Kg | Expected Life Time: | 100,000 Hrs |
| Driver IC: | MBI 5124 | Material: | Aluminum |
| High Light: | modular led display,shopping mall led display |
||
High Brightness 4G, WiFi, USB Control Life Span 100,000 Hrs Indoor LED Poster Display
Poster LED Display Player Advantages / Description:
1. Vivid and colorful picture provide fantastic visual effect. Brightness increased 3 times compared with conventional LCD (400 nits). Easy Operation only needs 3 minutes, guaranteeing wonderful user experience.
2. The product can be connected to multiple network modes and supports remote office control. Achieve the synchronous and asynchronous control with WIFI, 3G/4G wireless control.
3.Poster LED Display is a specially designed product targeting for indoor HD LED advertising player with highly integrated hardware and outdoor led display player with high brightness and easy installation, ultra-thin and light body, which can be your first choice to achieve perfect led advertising display effect.
Products Feature
1,Ultra slim and light-weight body, easy to lift up
The tickness of Our this series poster screen only 35mm. While others 45mm.making installation easy and fast .
2, HD visual experience
1.9 mm and 2.5 mm pixel pitch, high refresh rate (2880Hz) and brightness (1000 nits) provide users with perfect display effect.
3, Easy operation
Jointed correctly, being installed & dismounted by one person without tool.
4. Elegant appearance
Aluminum- alloy frame, fully enclosed frosted rear cover, acrylic glass surface,it is a mirror led display and customized border color present enchanting and eye-catching appearance.
5.Front service ability
Module replacement from front side with a handle magnet.
Specifications
| BP-1 | BP-2 | |
| Physical Pitch | 1.9 mm | 2.5mm |
| Pixel Configuration | SMD1010 | SMD2020 |
| Pixel Density | 276,676 pixels/m² | 160,000pixels/m² |
| Module Dimensions(W*H)(mm) | 280*210 | 280*210 |
| Panel Dimensions(mm) | 572*1920*35 | 572*1920*35 |
| NO. of Modules Per Panel (W*H) | 2*9 | 2*9 |
| Panel Material | Aluminum | Aluminum |
| Colors | 281 trillion | 281 trillion |
| Sigle Cabinet Weight | 32kg | 32kg |
| Processing | 16 bit | 16 bit |
| Refresh Rate | >=2800 Hz | >=2800 Hz |
| IP Rating | IP40 | IP40 |
| Viewing Angle | 160°/140° | 160°/140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Physical Resolution of Module(W*H)(mm) | 147*110 | 112*84 |
| Physical Resolution of Whole Set(W*H)(mm) | 301*1010 | 228*768 |
| Avg/ Max Power Consumption | 250/750W/Set | 250/750W/Set |
| Servicing | Front | Front |
| Driving Method | 1/28 Dynamic Scan | 1/28 Dynamic Scan |
| Frame Rate | 60 fps | 60 fps |
Products details
1. Widely viewing angle with rotating screen makes it possible to get 0° 90° 180° 270°by simple setting.

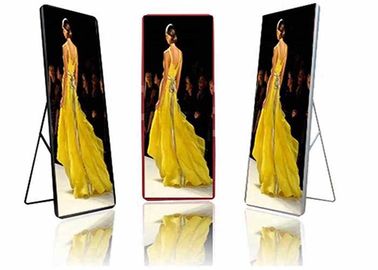

Poster LED Display is so far the thinnest and lightest led display products,With a thickness of 45mm and a lightweight body (only 32kg), led poster board makes an ideal solution for a wide array of installation requirement including fold-out stand, hanging and wall mounting.
Multi-application

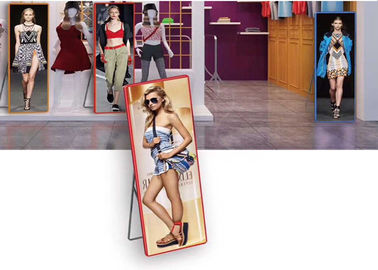

Applied in shopping mall, meeting room, control center, airport, station, super market, canteen and restaurant. Can be used as → Advertising platform;
→ Urgent information, instant message release
→ Publicity platform, brand model window
→ Shopping guide information, supporting service information release
Multiple communication modes--communication via USB, WIFI, network cable and HDMI increase service efficiency.
Packing
Flight case or Carry bag
Two pieces in one Flight case, Bottem shell have installed, save labor cost.
Carry bag easy to take.
About us
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
Feedback
1. We rely on our product quality and customer satisfaction to succeed. Therefore, your feedback is extremely important, please leave good feedback if you get satisfied with our goods and service.
2. We care about our valued customers, and will always try to help you. Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues.
3. Please email us before leaving any negative feedback or opening any dispute on the site. We will help you to resolve the problem.
Tips
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
