Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 2.5mm | LEDs: | Nationstar |
|---|---|---|---|
| Weight: | 28kg | Pannel Material: | Aluminum |
| Servicing: | Back | Viewing Angle: | 160°/140° |
| Refresh Rate: | ≥2880Hz | Contrast Ratio: | 4000:1 |
| Brightness: | ＞1000nits | Whole Set Dimensions: | 568 X 1898 X 32mm |
| High Light: | led poster screen,mirror led display |
||
P2.5 Ultra Slim Back Access Indoor LED Poster Led Placard for Advertising
Application: restaurant, mall&stores, bars&pubs, movie theaters, casinos, schools, churches etc.
LED Poster Specification:
| BP-2 | |
| Physical Pitch | 2.5mm |
| Pixel Configuration | SMD2020 |
| Pixel Density | 160,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 280 X 210 |
| Whole Set Dimensions (W x H) (mm) | 572 X 1920 X 35 |
| NO. of Modules Per Panel (W x H) | 2 X 9 |
| Physical Resolution of Module (W x H) | 112 x 84 |
| Physical Resolution of Whole Set (W x H) | 228 x 768 |
| Panel Material | Aluminum |
| Single Cabinet Weight | 32 kg |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 200 W/ Set |
| Max Power Consumption | 600 W/ Set |
| Driving Method | 1/28 Dynamic Scan |
| Operating Temp/Humidity | -10℃ - 60℃ / 10℃ - 60℃ |
| Storage Temp/Humidity | -30℃ - 60℃ / 10℃ - 60℃ |
| Brightness | ＞1,000 nits |
| Refresh Rate | ≥2,880 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| IP Rating (Front/Rear) | IP40 |
| Frame Rate | |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front |
LED Poster Features:
1. Ultra slim and lightweight. There only 28kg for whole one set. Even you can carry it with bag.
2. Modules for back access. It's easy to maintance and avoid scratch from front.
3. Mutiple installation.You can add standing and wheels to make the poster be easy move. Or hanging on ceilling, Mounted in wall.
4. View angle adjustable. You can adjust the angle by changing the bracket on poster back.
5. Various signal operations. You can control the sign by Network,Wifi even a mobile phone.
6. Play alone or multi-screen cascade. There will be golden ratio once you use 6sets of poster together.
7. High refresh rate ≥2880Hz, long service time. Its life span is more than 100000hrs. You can see vivid color and use it for long time.

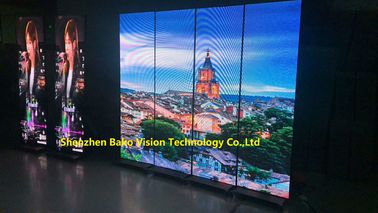

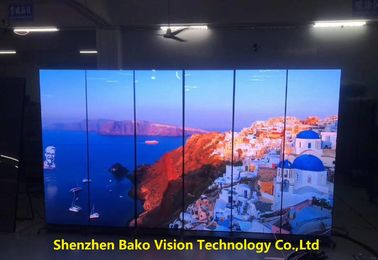

LED Poster Case:
FAQ
1. Are you trading company or manufacturer?
We are a professional led screen manufacturer.
2. How to payment?
We accept the L/C, T/T, Western Union.
3. What is the packing method?
We usually use plywood case or flight case.
4. How about the delivery time?
We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
5. Do you provide samples ? Is it free or extra?
We provide samples if you need, but the customers have to pay the sample cost and the courier cost.
6. How do you ship the goods?
We usually ship by DHL, UPS, FedEx or TNT. In addition, Airline and sea shipping also optional.
