Product Details:
Payment & Shipping Terms:
|
| Refresh Rate: | 2880 Hz | Contrast Ratio: | 4000 : 1 |
|---|---|---|---|
| Weight: | 28kg/set | Cabinet Size: | 576 X 1920 X 33mm |
| Grey Scale: | 16 Bit | LED Lamp: | Kinglight |
| Highlight: | truck mounted led screen,led advertising trailer |
||
Ultra Slim Indoor LED Poster for Mobile Advertising 2880Hz High Brush
Features:
1. Flat and Slim, only 33mm in thickness, save installation space.

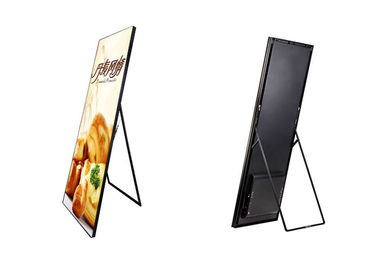

2. Support floor bracket, wall mounting, hanging installation,etc.

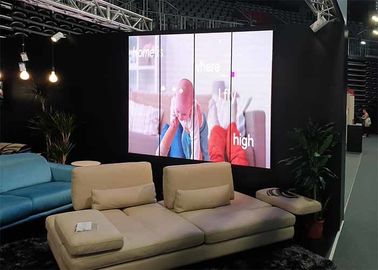

3. Support combination with multiple screens into larger screen size.
4. Integration with controller, even easy usage.
5. Full color with high resolution ensure the smooth and excellent visual experience.
6. Small pixel pitch ranges from P1.9 | P2.5 | P3.0 ensure a wide application for conferences, bobbies, retail stores, shopping mall, meeting rooms, airports, gas stations, supermarkets, clubs, and restaurants. etc.
7. Indoor applications with brightness 1000nits,2880HZ high refresh rate, grey scale, and contrast ratio provide high quality and smooth picture.
Parameters:
| Pixel Pitch | 1.9mm | 2.5mm | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 110,889pixels/m² |
| Module Dimention | 160mm x 160mm | 280mm x 210mm | 192mm x 192mm |
| Whole Set Dimention | 640 x 1920 x 33mm | 568 x 1898 x 33mm | 576 x 1920 x 33mm |
| Resolution of Module | 84 x 84 | 112 x 84 | 64 x 64 |
| Panel Material | Aluminum | ||
| Cabinet Weight | 27 kg~32 kg | ||
| Gray Level | 16 bit(281 trillion colors) | ||
| Contrast Ratio | 4000 : 1 | ||
| Average Power Consumption | 250W/Set | 200W/Set | 200W/Set |
| Max Power Consumption | 750W/Set | 600W/Set | 600W/Set |
| Driving Method | 1/32 Dynamic Scan | ||
| Brightness | 1000 nits | ||
| Refresh Rate | 2880 Hz | ||
| Viewing Angle(V/H) | 160°/ 140° | ||
| Frame Rate | 60 fps | ||
| Operating Temp/Humidity | -10ºC~60ºC / 10%~60% | ||
| Storage Temp/Humidity | -30ºC~60ºC / 10%~60% | ||
| IP Rating(Front/Rear) | IP40 | ||
| Expected Lifetime | 100,000 Hrs | ||
| Servicing | Rear | ||
