Indoor Fixed High Brightness Led Display , SMD2121 Led Display Board P3 P4 P5 P6

Indoor Fixed High Brightness Led Display , SMD2121 Led Display Board P3 P4 P5 P6
Indoor Fixed High Brightness Led Display , SMD2121 Led Display Board P3 P4 P5 P6

Large Image :  Indoor Fixed High Brightness Led Display , SMD2121 Led Display Board P3 P4 P5 P6

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE ETL FCC RoHS ISO CCC
Model Number: BIF Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 sqm
Price: $480 per Sqm
Packaging Details: Wooden case or flight case
Delivery Time: 15-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 sqm/month
Detailed Product Description
Pixel Configuration: SMD2121 Control System: Novastar
Viewing Angle: 160°/140° Refresh Rate: >1920Hz
Contrast Ratio: 4000:1 Panel Dimensions: Customized
High Light:

led video wall display

,

indoor led advertising scree

P3 P4 P5 HD Indoor Fixed LED Display Screen Led Wall


Features and Advantages:


  • Panel Size: The Panel size can be customized to fit different status.
  • High brightness: More than 1200nits
  • Convenient Assemble : Smart fast side locks make screen assemble fast and easier;
  • Seamless connection: superior color uniformity and stunning image quality, there is not black gap line on connection nor information missing;
  • Good heat dissipation: New cabinet design of LED screen with fan, good heat dissipation, can choose die-casting alumium material ,concise, slim and light weight;
  • Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  • 2 Years Warranty : we can repair each LED lamps, so the cost of maintain is lower,and easy to repair;Also you can send back the module to us to fix.
  • High Quality : we use famous IC MBI5124 and high quality lamp, Nationstar and so on, ensure high brightness;


Specification



Physical Pitch3mm4mm5mm6mm
Pixel ConfigurationSMD2121SMD2121SMD2121SMD3528
Pixel Density111,111 pixels/㎡62,500 pixels/㎡40,000 pixels/㎡27,777 pixels/㎡
Module Dimensions(W x H) (mm)192 x 192256 x 128320 x 160192 x 192
Panel Dimensions (mm)960 x 9601024 x 7681280 x 9601152 x 960
NO. of Modules Per Panel (W x H)5 x 54 x 64x 66 x 5
Physical Resolution of Module (W x H)64 x 6464 x 3264 x 3232 x 32
Physical Resolution of Panel (W x H)320 x 320256 x 192256 x 192192 x 160
Panel MaterialSteel / AluminumSteel / AluminumSteel / AluminumSteel / Aluminum
Scan Method1/32 Scan1/16 Scan1/16 Scan1/16 Scan
Gray Scale16bit16bit16bit16bit
Colours281 trillion281 trillion281 trillion281 trillion
Contrast Ratio4,000 : 14,000 : 14,000 : 14,000 : 1
Average Power Consumption120 W /Sqm120 W /Sqm120 W /Sqm120 W /Sqm
Max Power Consumption400 W /Sqm400 W /Sqm400 W /Sqm400 W /Sqm
Operating Temp/Humidity-10℃ - 60℃ / 10% - 60%-10℃ - 60℃ / 10% - 60%-10℃ - 60℃ / 10% - 60%-10℃ - 60℃ / 10% - 60%
Storage Temp/Humidity-30℃ - 60℃ / 10% - 60%-30℃ - 60℃ / 10% - 60%-30℃ - 60℃ / 10% - 60%-30℃ - 60℃ / 10% - 60%
Refresh Rate>1,920Hz>1,920Hz>1,920Hz>1,920Hz
Brightness900-1,200nits900-1,200nits900-1,200nits900-1,200nits
Horizontal Viewing Angle160°160°160°160°
Vertical Viewing Angle140°140°140°140°
Expected Lifetime100,000 Hrs100,000 Hrs100,000 Hrs100,000 Hrs
ServicingFront / RearFront / RearFront / RearFront / Rear
IP Rating (Front/Rear)IP 21IP 21IP 21IP 21

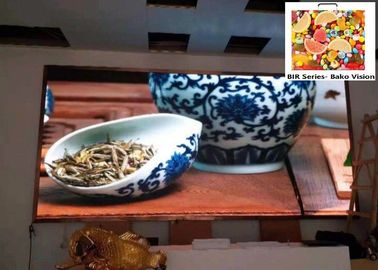

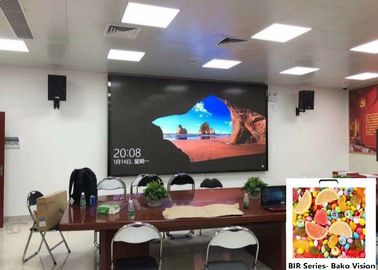

Case

Indoor Fixed High Brightness Led Display , SMD2121 Led Display Board P3 P4 P5 P6 0
Indoor Fixed High Brightness Led Display , SMD2121 Led Display Board P3 P4 P5 P6 1

FAQ
1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.
2. What kind of display we provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.
3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 10 years experience for LED display as a LED manufacturer located in Shenzhen
4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.
5.May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
6.What is the payment method?
We support the payment methods as TT, L/C.
7. What's the pixel pitch for Indoor LED Display Screen?
Indoor (P2.6mm/P2.97mm/P3.91/P4.81mm/P6.25mm) led display screen
8.Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system
9.What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
10. What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
