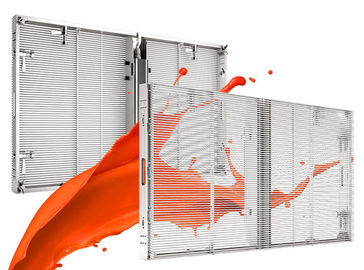

SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30

SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30
SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30 SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30 SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30 SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30

Large Image :  SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CCC.CE.ETL.FCC
Model Number: BG

Payment & Shipping Terms:

Minimum Order Quantity: 1 m²
Packaging Details: Wooden Case
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000 m²/month
Detailed Product Description
Panel Material: Aluminum Colours: 281 Trillion
Greyscale: 16 Bits Contrast Ratio: 2000:1
Refresh Rate: >1920 Hz Servicing: Rear
High Light:

clear led screen

,

see through led screens



SMD 3528 Indoor Transparent LED Screens Full Color 16 Bits Greyscale High Transparency Rear Servicing for Fixed



Clean and See Glass

Excellent Viewing Angle

Hidden Cable Appearance

Easy to Install and Dismantle





Parameter

  BG-7.5-8 BG-10 BG-16 BG-20
Physical Pitch 7.5 mm 10 mm 16 mm 2 mm
Pixel Configuration SMD3528 SMD528 SMD3528 SMD3528
Pixel Density 17,777 pixels/m² 10,000 pixels/m² 3,906 pixels/m² 2,500 pixels/m²
Module Dimensions (W × H) (mm) 480 × 320 480 × 320 480 × 320 480 × 320
Panel Dimensions (mm) 1920 × 640 1920 × 640 1920 × 640 1920 × 640
NO .of Modules Per Panel (W × H) 4 × 2 4 × 2 4 × 2 4 × 2
Physical Resolution of Module (W × H) 64 × 42 48 × 32 30 × 20 24 × 16
Physical Resolution of Panel (W × H) 256 × 80 192 × 64 120 × 40 80 × 32
Panel Material Aluminum Aluminum Aluminum Aluminum
Single Cabinet Weight 9 KG/m² 8 KG/m² 7.2 KG/m² 6.5 KG/m²
Processing 16 bit 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 2,000 : 1 2,000 : 1 2,000 : 1 2,000 : 1
Average Power Consumption 204 W/m² 195 W/m² 218 W/m² 218 W/m²
Max Power Consumption 670 W/m² 650 W/m² 650 W/m² 650 W/m²
Operating Temp/Humidity -10ºC - 60ºC / 10% - 60% -10ºC - 60ºC / 10% - 60% -10ºC - 60ºC / 10% - 60% -10ºC - 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Brightness 5,500 - 6,000nits 5,500 - 6,000nits 5,500 - 6,000nits 5,500 - 6,000nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing angle 140° 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
IP Rating (Front/Rear) IP 30 IP 30 IP 30 IP 30
Servicing Rear Rear Rear Rear
Certification CCC, CE, ETL, FCC CCC, CE, ETL, FCC CCC, CE, ETL, FCC CCC, CE, ETL, FCC





SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30 0               SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30 1





Future


Slim, Light Weight and Quiet

35mm-45mm thickness

14kg per square meter

Available to attach onto glass wall directly



High Transparency and Concise

60-80% transparency rate among different pitches

Variable brightness options for day and night environment

Hidden cable design looks clean and concise



Special Emitting Angle

Lighting from tube side emitting

Brightness and color are penetrated via the glass effect

Embedded-In SMD Technology, avoid to be knocked off during transportation and installation









SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30 2SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30 3







Our Service



1.Pre-sale service:
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.


2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.


3.After-sale service:
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.





COMPANY INTRODUCTION

Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!

SMD 3528 Indoor Transparent LED Screens Full Color Aluminum Panel Material IP30 4







FAQ

Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.



Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.
