Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4.81 | Panel Dimensions(W*H)mm: | 500*500/500*1000 |
|---|---|---|---|
| Panel Material: | Die-casting Alumium | Contrast Ratio: | 2,000:1 |
| Refresh Rate: | 1920Hz | Brightness: | 900-1,200 Nits |
| Driver IC: | Mbi5124 | Grey Scale: | 65536 Degree |
| Mtbf: | More 50,000 Hours | Humidity: | 10%-95% |
| Using Site: | Stage Performance | ||
| High Light: | led screen stage backdrop,concert led screen |
||
Interactive Dance Floor LED Display Screen P4.81 900-1200 Nits For Wedding Stage18-BD-Tia.pdf
Interactive Dance Floor LED Display Features:
1. Interactive itself, no need extra device
2. Waterproof face
2. Optional cabinet size, 500mm x500mm or 1000x1000mm
3. Display contents can be customized to match with your site location
Interactive Dance Floor LED Display Parameters:
| Cabinet Specification | ||||||||
| 1 | Cabinet Size(W X H X D) | 500mm x 1000mm x 85mm | ||||||
| 2 | Cabinet Resolution(dot) | 104 x 104 pixels | ||||||
| 3 | Module Quanity (pcs) | 8pcs | ||||||
| 4 | Cabinet Pixels | 10816 pixels | ||||||
| 5 | Pixel Density | 43264 pixels/m2 | ||||||
| 6 | Cabinet Materials | Standard floor cabinet | ||||||
| 7 | Cabinet Weight | 25kg per cabinet | ||||||
| 8 | Packaging | Flight case / Export Wooden box | ||||||
| Whole Screen Specification | ||||||||
| 1 | Screen Brightness | ≥5500cd/m2 | ||||||
| 2 | Driving Method | 1/6 scan | ||||||
| 3 | Best Viewing Distance | 5m - 40m | ||||||
| 4 | Max. Power Consumption | 800W/m2 | ||||||
| 5 | Average Power Consumption | 400W/m2 | ||||||
| 6 | Refresh Frequency | ≥1920Hz | ||||||
| 7 | Uninterrupted Working Hours | ≥72 hours | ||||||
| 8 | Screen Life-span | ≥100,000 hours | ||||||
| 9 | MTBF | ≥5,000 hours | ||||||
| 10 | Discrete Blind Spot Rate | <1/10000 | ||||||
| 11 | Protective Scale | IP65 | ||||||
| 12 | Screen Plainness | <±1mm | ||||||
| 13 | Control System | Linsn, or Novastar or Interactive system | ||||||
| 14 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | ||||||

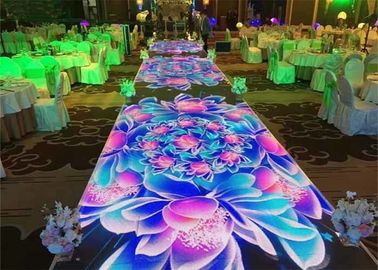

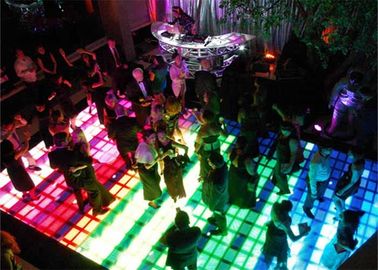

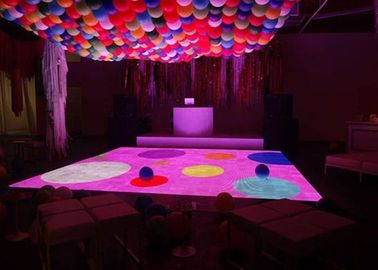

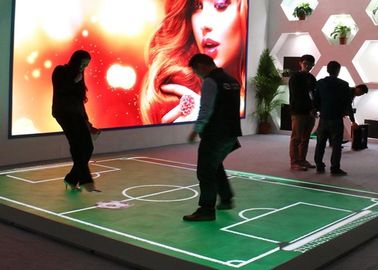

Interactive Dance Floor LED Display Cases:
P4.81 (Interactive) Dance Floor LED Display Screen for Wedding, Stage, Rental Event with High Performance and High Quality Advantages:
1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet: the thickness is only 80mm, the space of the screen is small , and the entire screen will be more beautiful.
3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon effectively. The effect of the display will be more clear and exquisite.
4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.
5. Low release heat: low noise, low consumption, low cost, no fan design but excellent thermal design and excellent thermal dispersion.
We Offer Professional production Including:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass order needs about 15-20 days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
