Payment & Shipping Terms:
|Weight:||8.2kg/m²||Pixel Pitch:||P2.5 P3 P4 P6.66|
|Refresh Rate:||1920 Hz||Servicing:||Front|
|Gray Level:||16bit||IP Rating:||IP40|
flexible led curtain display,
foldable led screen

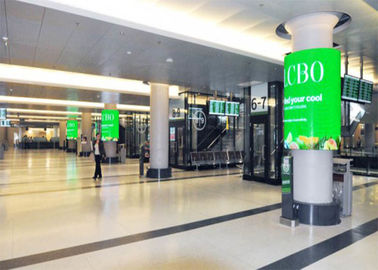

Twisted Installation Curved Flexible LED Display 5mm Thickness Good Heat Effect
Module can be bent, can be used for the surface of the arc place, that can be inward arc, but also can be outward the arc, use of flexible.
flexible led screen adopt magnet pole directly adsorbed on the cabinet, It can be front and back maintenance, greatly facilitate the installation.
|Physical Pitch||2.5 mm||3.0 mm||4.0 mm||6.66 mm|
|Pixel Configuration||SMD 2121||SMD 3528|
|Pixel Density||160,000 pixels/m²||111,111 pixels/m²||62,500 pixels/m²||22,545 pixels/m²|
|Module Dimentions||240 x 120 mm||320 x 160 mm|
|Resolution of Module||96 x 48||80 x 40||60 x 30||48 x 24|
|Gray Level||16 bit(281 trillion colors)|
|Contrast Ratio||4000 : 1||2000 : 1|
|Average Power Consumption||9 Watt||10 Watt|
|Max Power Consumption||12 Watt||13 Watt|
|Brightness||1000 nits||1500 nits|
|Refresh Rate||1920 Hz|
|Driving Method||1/40 scan||1/48 scan|
|Horizontal Viewing Angle||160 degree|
|Vertical Viewing Angle||140 degree|
|Expected Lifetime||100,000 Hrs|
|IP Rating(Front/Rear)||IP 40|
1)Q: How to choose a proper led screen for your need?
A: You just need to consider three simple questions when you choose a led screen.
1.Will you use it indoor or outdoor?
2.Is it for rental usage(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever)?
3.What is the approximate size of the whole led screen you would like to purchase?
2)Q: How to install it after I received it?
A: We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
3)Q: How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.
4)Q: I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
