Product Details:
Payment & Shipping Terms:
|
| LEDs: | SMD1921 | Pannel Material: | Die-Casting Aluminum |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Contrast Ratio: | 4000:1 | Brightness: | ＞6000nits |
| Panel Dimensions: | 500 X 500 X 80 / 500 X 1000 X 80 | Weight: | 9 / 15 Kg/panel |
| High Light: | led screen stage backdrop,stage background led screen |
||
Pixel Pitch 3.91mm Outdoor Waterproof Rental LED Display With 500 x 500mm / 500x1000mm Cabinet
Features
1 ) Ultra-thin and Super-light: only 9KG per cabinet of 500mm W*500mm H and 15 KG per cabinet of 500mm W*1000mm H and depth is only 80mm, can stand on floor independently.
2) 500*1000mm cabinet can work with our 500*500mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m
3) The appearance is very simple and elegant,looks very high end
4) With specially designed fast lock system, easy to install and dismantle
5) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
6) The tolerance is less than 0.2mm so the gap between adjacent cabinet can be made to minimum.Surface is very flat,viewing angle is very wide.
7) High refresh rate with NOVA control system,no scaning line when photographed.
8) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
9) 16 bit color showing very clear and vivid video and images.
10) Good thermal design, excellent heat dissipation.
Specification:
| BOR-Ⅲ-3 | BOR-Ⅲ-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/㎡ | 43,264 pixels/㎡ |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 / 500 x 1000 x 80 | 500 x 500 x 80 / 500 x 1000 x 80 |
| NO. of Modules Per Panel (W x H) | 2 x 2 / 2 x 4 | 2 x 2 / 2 x 4 |
| Physical Resolution of Module (W x H) | 64 x 64 | 52 x 52 |
| Physical Resolution of Panel (W x H) | 128 x 128 / 128 x 256 | 104 x 104 / 104 x 208 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 9 / 15 kg/panel | 9 / 15 kg/panel |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 75 /150 W /panel | 75 /150 W /panel |
| Max Power Consumption | 225 /550 W /panel | 225 /550 W /panel |
| Operating Temp/Humidity | -20℃ - 60℃ / 10℃ - 60℃ | -20℃ - 60℃ / 10℃ - 60℃ |
| Storage Temp/Humidity | -30℃ - 60℃ / 10℃ - 60℃ | -30℃ - 60℃ / 10℃ - 60℃ |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥6,000nits | ≥6,000nits |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 | IP 65 / IP 54 |

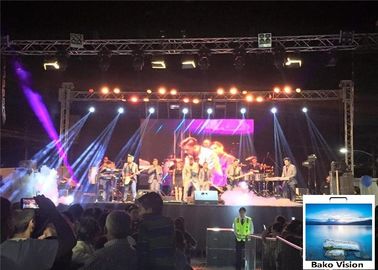

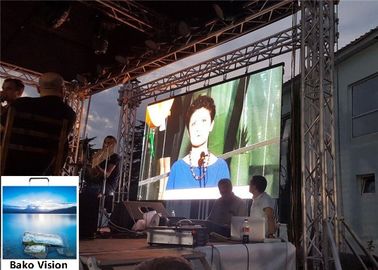

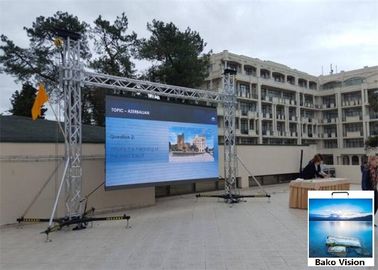

Case:
