IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage

Brand Name: Bako Vision
Model Number: BOR-II
Place of Origin: China
Certification: CCC.CE.ETL.FCC
Minimum Order Quantity: Negotiation
Price: Negotiation
Supply Ability: 10000 m²/month

Product Details


Pixel Pitch: 3.91mm / 4.81mm Panel Material: Die-casting Aluminum
Refresh Rate: >1920 Hz Brightness: >6000 Nits
Servicing: Front/Rear Contrast Ratio: 4000:1
Panel Dimensions: 500 Xx 500 X 80mm / 500 X 1000 X 80mm Weight: 9 / 15kg/Panel
Highlight

outdoor led screen hire

,

events led display

Product Description

P3.91mm P4.81mm Curtain Waterproof Outdoor Rental LED Display Screen



Features:

1 ) Ultra-thin and Super-light: only 9KG per cabinet of 500mm W*500mm H and 15 KG per cabinet of 500mm W*1000mm H and depth is only 80mm, can stand on floor independently.

2) 500*1000mm cabinet can work with our 500*500mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m

3) The appearance is very simple and elegant,looks very high end

4) With specially designed fast lock system, easy to install and dismantle

5) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.

6) The tolerance is less than 0.2mm so the gap between adjacent cabinet can be made to minimum.Surface is very flat,viewing angle is very wide.

7) .High refresh rate with NOVA control system,no scaning line when photographed.

8) . Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost

9) 16 bit color showing very clear and vivid video and images.

10) Good thermal design, excellent heat dissipation.



Specification

  BOR-I-3 BOR-I-4
Physical Pitch 3.91mm 4.81mm
Pixel Configuration SMD1921 SMD2525
Pixel Density 65,536 pixels/Sqm 43,264 pixels/Sqm
Module Dimensions(W x H) (mm) 250 x 250 / 250 x 500 250 x 250 / 250 x 500
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80 500 x 500 x 80 / 500 x 1000 x 80
NO. of Modules Per Panel (W x H) 2 x 2 2 x 2
Physical Resolution of Module (W x H) 64 x 64 / 64 x 128 52 x 52 / 52 x 104
Physical Resolution of Panel (W x H) 128 x 128 / 128 x 256 104 x 104 / 104 x 208
Panel Material Die-Casting Aluminum Die-Casting Aluminum
Single Cabinet Weight 9 / 15 kg/panel 9 / 15 kg/panel
Processing 16bit 16bit
Colours 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1
Average Power Consumption 75 /150 W /panel 75 /150 W /panel
Max Power Consumption 225 /550 W /panel 225 /500 W /panel
Operating Temp/Humidity -20ºC - 60ºC / 10ºC - 60ºC -20ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity -30ºC - 60ºC / 10ºC - 60ºC -30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate >1,920 Hz >1,920 Hz
Brightness >6,000nits >6,000nits
Horizontal Viewing Angle 160° 160°
Vertical Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Max Stacking 20/10 20/10
Max Hanging 20/10 20/10
Servicing Front / Rear Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54 IP 65 / IP 54

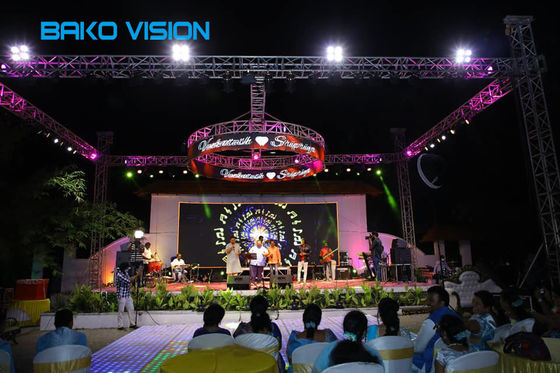

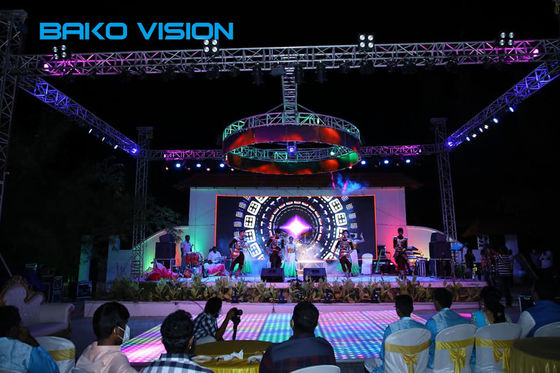

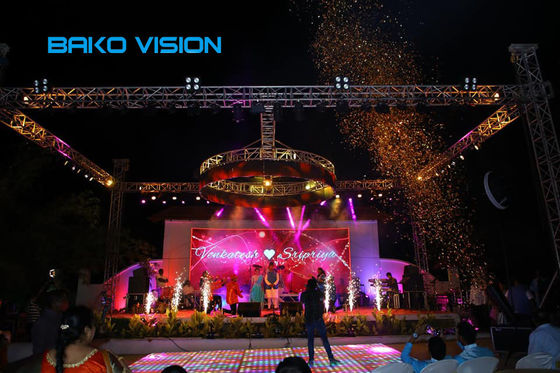

Application


IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 0

IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 1

IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 2IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 3IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 4IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 5IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 6IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 7IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 8IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 9IP65 Outdoor Curtain Rental LED Display Nationstar Lamp 6000 Nits Brightness For Stage 10

Our Service



Pre-sales service :

Our team design and make solutions based on different requirements from different customers, what you think is what we can do.

After-sales services:

1. We provide customer service through What's APP, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We provide one professional engineer to one customer to keep fastly reply.

Installation Service:

1. We provide detailed CAD drawing to customer for preparing metal structure.

2. We could dispatch our engineer to your place , guide installation and free training.

3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements
