|Material:||Die-casting Aluminum||Refresh Rate:||1920 Hz|
|Panel Size:||1024 X 768mm||Module Size:||512 X 256|
led digital billboard,
outdoor led billboard
IP65 Waterproof Outdoor LED Display Advertising Boards with Adjustable Brightness
1. Lightweight large format,slim and smart ideal substitution for traditional outdoor buckly and heavy cabinet.
2. One standard chassis 1024mm x 768mm, covering pitches from 2.6mm to 10.6mm.
3. Suitable brightness adjustable for outdoor day and night.
4. Deep black levels, contrast ratio 4000 : 1
5. Die-casting cabinet, 27~35kg per cabinet, 100mm thickness.
6. Fanless design

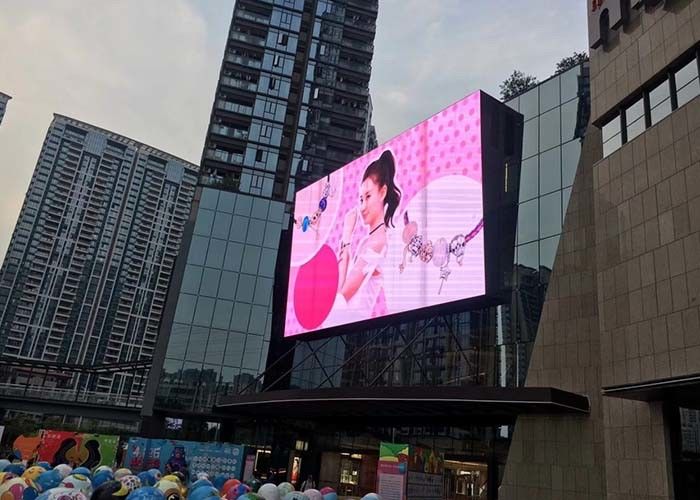

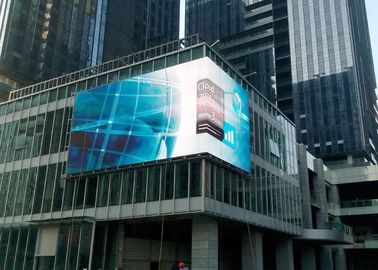

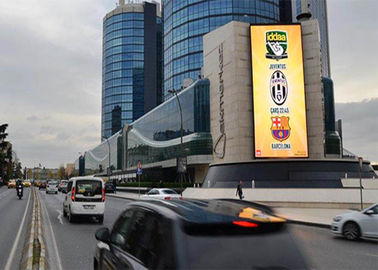

Shopping malls, railways, airports,commercial advertising, Stadium perimeter, business establishments, etc.
We provide 2 years warranty. During this period, we provide free parts for replacement , but we will charge you productive cost for the parts when the warranty expires.
|Module Dimention||512mm x 256mm|
|Cabinet Dimention||1280 x 768 x 100mm|
|Resolution of Module||160 x 80||80 x 40||64 x 32|
|Resolution of Cabinet||320 x 240||160 x 120||128 x 96|
|Grey Level||16 bit(281 trillion colors)|
|Contrast Ratio||4000 : 1|
|Average Power Consumption||240W/ panel||350W/ panel|
|Max Power Consumption||600W/ panel||700W/ panel|
|Refresh Rate||1920 Hz|
|Brightness||4000 nits||5500 nits|
|Viewing Angle(H/V)||160 ° / 140 °|
|Life Span||100,000 Hours|
|Servicing||Front / Rear|
|IP rating||IP65 / IP 54|
|Operating Temp/Humidity||-20℃~60℃ / 10%~90%|
|Storage Temp/Humidity||-30℃~60℃ / 10%~90%|
1. How can you ensure the led display product quality?
Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.
2. What is your terms of payment?
T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.How to choose a proper led screen for need?
You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?
2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?
4. How to install it after received?
We will offer you the drawing to guide you for installation, even send our engineer to you for help if needed.
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
