Product Details:
Payment & Shipping Terms:
|
| Tube Chip Color: | Full Color | Pixel Pitch: | P1.25 /P1.56 /P1.66 /P1.92 |
|---|---|---|---|
| Pixel Configuration: | 1R 1G 1B | Pixel Density: | Optional |
| Color Number: | 281 Trillion | Viewing Angle(H/V): | 160 / 140 |
| Contrast Ratio: | 4000:1 | Gray Scale: | 16bit |
| High Light: | modular led display,shopping mall led display |
||
UHD LED Display Full Color Video Wall P1.25 With Ultra Small Fine Pixel Pitch for TV Studio, Control Room with High-Standard
UHD LED Display Full Color Video Wall P1.25 With Ultra Small Fine Pixel Pitch for TV Studio, Control Room with High-Standard is kind of a high-end product and mainly used in meeting room, tv studio, video conference and control room. And we recently just exported this product to a tv studio in Macao, I can email your some pictures if you are interested.
With the help of UHD LED Display, we can create a bright, open and highly-productive meeting environment together, and this screen helps grab and maintain your attendees' attention while improving information delivery effectiveness and overall efficiency at each and every meeting.
UHD LED Display Full Color Video Wall Specifications
| UHD-1.2 | UHD-1.5 | UHD-1.8 | UHD-2.3 | |
| Physical Pitch | 1.25mm | 1.56mm | 1.87mm | 2.34mm |
| Pixel Configuration | SMD0909 | SMD1010 | SMD1010 | SMD1010 |
| Pixel Density | 640,000pixels/m² | 409,600pixels/m² | 286225pixels/m² | 182329pixels/m² |
| Module Dimensions(W*H)(mm) | 150*168.75 | |||
| Panel Dimensions(mm) | 600*337.5 | |||
| No. Of Modules Per Panel(WxH) | 4x2 | |||
| Physical Resolution of Module(WxH) | 120x135 | 96x108 | 80x90 | 64x72 |
| Physical Resolution of Panel(WxH) | 480x270 | 384x216 | 320x180 | 256x144 |
| Panel Material | Die-casting | |||
| Single Cabinet Weight | 6kg/panel | |||
| Processing | 16 bit | |||
| Color Number | 281 trillion | |||
| Contrast Ratio | 4,000:1 | |||
| Average Power Consumption | 220W/m² | |||
| Max Power Consumption | 600W/m² | |||
| Refresh Rate | 3840Hz | |||
| Driving Method | 1/27 Scan | 1/27 Scan | 1/30 Scan | 1/24 Scan |
| Brightness | >800 nits | |||
| Viewing Angle(H/V) | 160°/140° | |||
| Expected Lifetime | ≥100,000 Hrs | |||
| IP Rating(Front/Rear) | IP40 | |||
| Operating Temp/Humidity | -20ºC-50ºC/10%-90% | |||
| Storage Temp/Humidity | -40ºC-60ºC/10%-85% | |||
| Certification | CCC,TUV-CE,ETL | |||

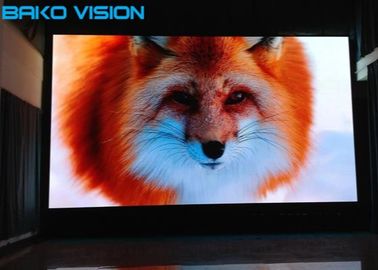

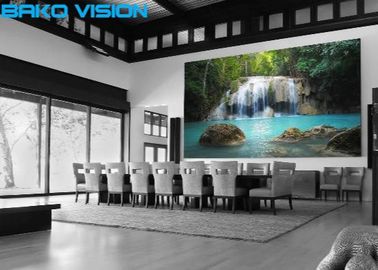

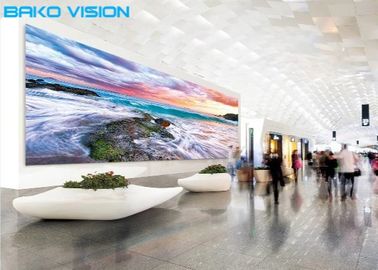

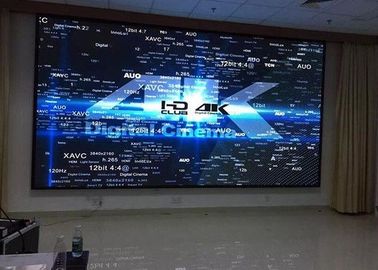

UHD LED Display Full Color Video Wall P1.25 Cases
UHD LED Display Full Color Video Wall Features
16:9 HD excellent fidelity
High accuracy achieves high quality
Unique module design
Precise localization
Front service and disassembly
Wire hidden design
Handle internally installed & Module magnetically mounted
Lightweight and slim thickness
