Payment & Shipping Terms:
|Warranty:||2 Years||Panel Size:||960x640mm|
|Physical Pitch:||16mm||Viewing Angle:||160/140 Degree|
|Life Span:||100000 Hours||Pixel Configuration:||SMD3528|

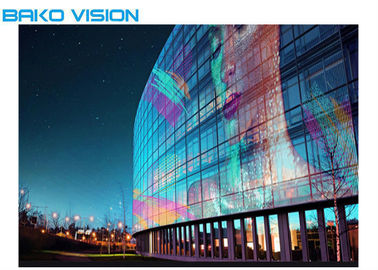

transparent glass led display,
see through led screens
High Transparency P16 Indoor Transparent LED Screens High Brightness SMD
Clean and See Through Displaying, Innovative Transparent Technology
Laminated Safety Glass
Excellent Viewing Angle
Hidden Cable Appearance
Easy to Install and Dismantle
Slim, Lightweight and Quiet
Available to attach onto glass wall directly
High Transparency and Concise
60-80% transparency rate among different pitches
Variable brightness options for day and night environment
Hidden cable design looks clean and concise
Special Emitting Angle
Lighting from tube Side emitting
Brightness and color are penetrated via the glass effect
Embedded-In SMD technology, avoid being knocked off
During transportation and installation
|Pixel Density||32768 pixels/㎡||33,250 pixels/㎡||30,000 pixels/㎡||25,000pixels/㎡|
|Physical Resolution of Module(W*H)||256*32/128X32||128*40||96*48||96*40|
|Physical Resolution of Panel(W*H)||256*128||256*80||192*96||192*80|
|Processing||16 bit||16 bit||16 bit||16 bit|
|Colours||281 trillion||281 trillion||281 trillion||281 trillion|
|Average Power Consumption||207W/panel||201W/panel||209W/panel||203W/panel|
|Max Power Consumption||690W/panel||670W/panel||696W/panel||670W/panel|
|Horizontal Viewing Angle||160°||160°||160°||160°|
|Vertical Viewing Angle||140°||140°||140°||140°|
|IP Rating (Front/Rear)||IP30||IP30||IP30||IP30
|Pixel Density||16,625pixels/m²||10,000pixels/m²||3,906 pixels/m²||2,500 pixels/m²|
|Module Dimensions (W*H)(mm)||480*320||480*320||480*320||480*320|
|NO. Of Modules Per Panel(W*H)||2*2||2*2||2*2||2*2|
|Physical Resolution of Module(W*H)||64*40||48*32||30*20||24*16|
|Physical Resolution of Panel(W*H)||128*80||96*64||60*40||48*32|
|Single Cabinet Weight||9kg/m²||8kg/m²||7.2kg/m²||6.5kg/m²|
|Colour Number||281 trillion||281 trillion||281 trillion||281 trillion|
|Average Power Consumption||204W/m²||195W/m²||218W/m²||218W/m²|
|Max. Power Consumption||670W/m²||650W/m²||650W/m²||650W/m²|
|Operating Temp/Humidity||-10ºC-60ºC/ 10%-60%||-10ºC-60ºC/ 10%-60%||-10ºC-60ºC/ 10%-60%||-10ºC-60ºC/ 10%-60%|
|Storage Temp/Humidity||-30ºC-60ºC/ 10%-60%||-30ºC-60ºC/ 10%-60%||-30ºC-60ºC/ 10%-60%||-30ºC-60ºC/ 10%-60%|
|Brightness||>5500 nits||>5500 nits||>5500 nits||>5500 nits|
|Certification||CCC,CE,ETL, FCC||CCC,CE,ETL, FCC||CCC,CE,ETL, FCC||CCC,CE,ETL, FCC|
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team,
we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Q1. Are you trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.
Q2. What's your payment term?
A: T/T, Western Union, L/C
Q3. Do you provide samples ? is it free?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 days working days for batch order
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.
Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection.
And we often attend exhibitions around the world every year, so we can visit you if you need at that time.
