Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | 3.91mm | Pixel Density: | 65,536 Pixels/㎡ |
|---|---|---|---|
| Lamp: | SMD1921 | Viewing Angle: | 160°/140° |
| Contrast Ratio: | 4000:1 | Brightness: | ＞6000nits |
| Panel Dimensions: | 500 X 500 X 80 / 500 X 1000 X 80 | Weight: | 9 / 15kg |
| High Light: | led screen stage backdrop,concert led screen |
||
Pixel Pitch 3.91mm Outdoor Waterproof Rental Stage LED Display With 500x500mm/500x1000mm Cabinet
Features and Advantages:
1 ) Ultra-thin and Super-light: only 8KG per cabinet of 500mm W*500mm H and 13KG per cabinet of 500mm W*1000mm H and depth is only 80mm, can stand on floor independently.
2) 500*1000mm cabinet can work with our 500*500mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m
3) The appearance is very simple and elegant,looks very high end
4) With specially designed fast lock system, easy to install and dismantle
5) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
6) The tolerance is less than 0.2mm so the gap between adjacent cabinet can be made to minimum.Surface is very flat,viewing angle is very wide.
7) High refresh rate with NOVA control system.
8) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
9) 16 bit color, howing very clear and vivid video and images.
10) Good thermal design, excellent heat dissipation
Specification:
| Physical Pitch | 3.91mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 65,536 pixels/Square Meter |
| Module Dimensions(W x H) (mm) | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 / 500 x 1000 x 80 |
| Physical Resolution of Panel (W x H) | 128 x 128 / 128 x 256 |
| Panel Material | Die-Casting Aluminum |
| Single Cabinet Weight | 8 / 13 kg/panel |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 75 /150 W /panel |
| Max Power Consumption | 225 /550 W /panel |
| Operating Temp/Humidity | -20ºC - 60ºC / 10ºC - 60ºC |
| Storage Temp/Humidity | -30ºC - 60ºC / 10ºC - 60ºC |
| Refresh Rate | >1,920 Hz |
| Brightness | ≥6,000nits |
| Expected Lifetime | 100,000 Hrs |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 |

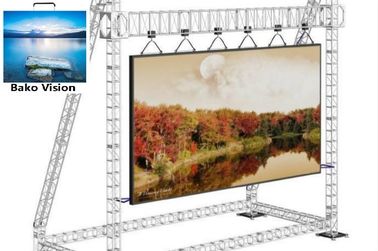

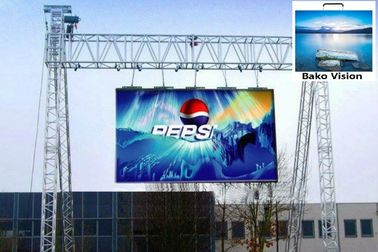

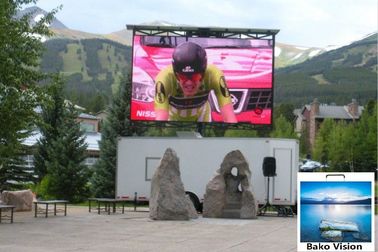

Case:
FAQ:
1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.
2. What kind of display we provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.
3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 14 years experience for LED display as a LED manufacturer located in Shenzhen
4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.
5.May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
6.What is the payment method?
We support the payment methods as TT , L/C , D/P.
7. What's the pixel pitch for Outdoor LED Display Screen?
Outdoor (P3.91mm/P4.81mm/P5.95mm/P6.25mm) led display screen
8.Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system
9.What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
10.What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
11. What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
