Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P3.91 , P4.81 , P5.95 , P6.25 | Panel Dimension: | 500x500mm / 500x1000mm |
|---|---|---|---|
| IP Rating: | IP65/IP54 | Viewing Angle: | 160°（H）140°（V） |
| Sevicing: | Front / Rear | Brightness: | 6000 Nits |
| High Light: | led screen stage backdrop,concert led screen |
||

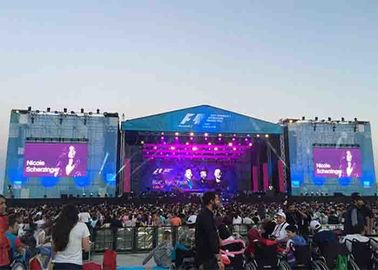

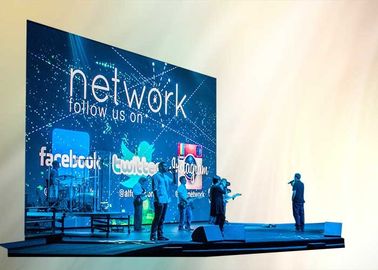

1920Hz Outdoor Rental LED Display Stage Backdrop 6000 Nits IP65 Waterproof
Features:
1. Show the beauty
4000: 1 high contrast, horizontal 160 °, vertical 140 ° viewing angle, support seamless splicing, high brush 1920Hz ,high gray 16bit.
2. LCD window monitoring founction
LCD monitoring screen to detect the exact temperature, voltage, working time, etc easily.
3. Outdoor Protection
IP65 front and IP54 rear to provide waterproof and dustproof operating environment..
4. Curved shape available
±15 ° angle lock for curved screen, 90° right angle cabient for cubic screen.
5. Die-casting Aluminum
Leasing LED video screen with die-casting aluminum frame design, screen is super light and thin, saving space and costs, fashionable and beautiful; Adopting die-casting aluminum improves the heat dispersion, prolonging the lifetime of the led display.
6. Slim and lightweight
Convenient in transporting and installing & saving labor cost, suitable for flow shows.
7. Dual signal backup port
Data backup ports on rear box for special situation.
Parameters:
| Pixel Pitch | 3.91mm | 4.81mm | 5.95mm |
| Pixel Configuration | SMD1921 | SMD2525 | SMD2525 |
| Pixel Density | 65,536pixels/m² | 43,264pixels/m² | 28,224pixels/m² |
| Moduel Demensions(mm) | 250x250 / 250x500 | ||
| Panel Demension(mm) | 500x500 / 500x1000 | ||
| Resolution of Module | 64x64 / 64x128 | 52x52 / 52x104 | 42x42 / 42x84 |
| Grey Level | 16 bits(281 trillion colors) | ||
| Single Cabinet Weight | 8/15kg | ||
| Contrast Ratio | 4000 :1 | ||
| Brightness | 6000 nits | ||
| Refresh Rate | 1920Hz | ||
| Average Power Consumption | 75/150 W/panel | ||
| Max Power Consumption | 225/550 W/panel | ||
| Viewing angle(H/V) | 160°/ 140° | ||
| Max Stacking | 20/10 | ||
| Max Hanging | 20/10 | ||
| Expected Lifetime | 100,000 hours | ||
| IP Rating (Front/Rear) | IP 65/IP 54 | ||
| Certification | CCC, CE, ETL, FCC | ||
Solutions:
Company Introduction:
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any iquiry!
FAQ:
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
