6000 Brightness Stage Rental Led Display P4.81mm SMD2727 500*500 Cabinet Size
Product Details
| Receiver Card: | NOVA | Pixel Configuration: | SMD2727 |
|---|---|---|---|
| Brightness: | >60,00 Nits | Operating Temp/ Humidity: | -20ºC-60ºC/10%-60% |
| Refresh Rate: | >1920 Hz | LED Lamps: | Nation Star |
| Life Span: | 100,000 Hrs | Colors: | 281 Trillion |
| Highlight |
events led display,led rental display |
||
Product Description
P4.81mm 500*500 Cabinet Size Outdoor Rental LED Screen With 6000 Brightness
Main Features
1. Lightweight for an easy move and handle, and it reduces labour cost and time for assembly and disassembly.
2. 500*500mm /500*1000mm cabinet size to choose. 500*500mm weight only 9kg/ panel.
3. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.
4. Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.
5. Steady and reliable system:with strong anti-interference ability and long service life that can continually, work for over 72 hours, and it's easy to operate the system.
6. wide application usage, high IP grade,cost effective, customers can enjoy high-quality visual effect with , favorable price, greatly lower investment cost.
Parameter
| BOR-III-4.81 | BOR-III-5.95 | BOR-III-6.25 | |
| Physical Pitch | 4.81mm | 5.95mm | 6.25mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 43,264 pixels/m² | 28,224 pixels/m² | 25,600 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/ 2*4 | 2*2/ 2*4 | 2*2/ 2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 52*52 | 42*42 | 40*40 |
| Physical Resolution of Panel(W*H)(mm) | 104*104/104*208 | 84*84/ 84*168 | 80*80/ 80*160 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
Products Image
The cabinet details
1. Position pin
2. Quick lock
3. The handle
4. Power plug
5. Receiving car
6. Power supply
Lighter than ever
Slim and smart ideal substitution for traditional outdoor rental LED screen
The aluminum material makes the cabinet 20% lighter than before.
Curved design
Truss hanging and ground support both available
Concave and convex angle can reach to 0°-10° degree
Meeting the demands of creative and customized request.

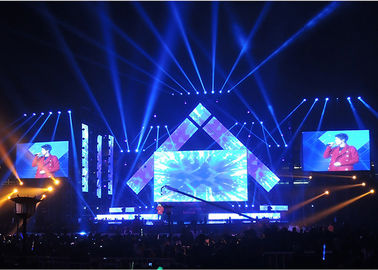

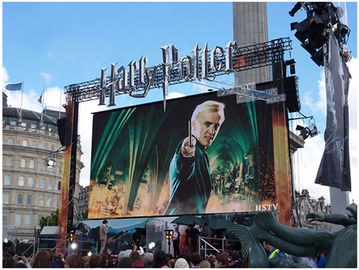

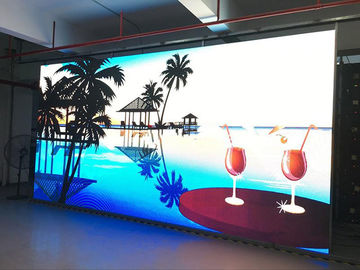

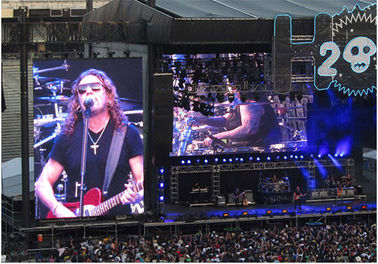

Application Case:
Widely used for shopping malls, entertainment venues, wedding hall, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products w
ith good service for our clients.
