Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | SMD 3535 | IP Rating(Front/Rear): | IP65/ IP54 |
|---|---|---|---|
| Expected Lifetime: | 100,000 Hrs | Module Demensions (W*H)(mm): | 256*256 |
| Panel Dimensions (mm): | 1280*768*150 | Operating Temp / Humidity: | -20ºC-50ºC/10%-90% |
| Panel Material: | Steel/ Aluminum | Contrase Ratio: | 2000:1 |
| High Light: | led digital billboard,outdoor led billboard |
||
IP65 Waterproof Digital Billboard for Advertising with High Resolution
Description
P6.67/P8/P10 outdoor LED screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.
Main advantages:
1. High refresh rate: over 1920 Hz / s, no scan lines when shooting videos and pictures.
2.Range working temperature design can meet your outdoor using request.
3.The cabinet of unit moules asopts to high-temperature spraying technology, the antirust function is greatly improved.
4. Low power comsumption. Using high-brightness LED lights, high conversion efficiency and PFC function power supply, reducing power consumption by more than half compared with conventional power supplies.
5. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
6. The control system,we classified synchronous control and asynchronous control.Currently our asynchronous control can make use of USB,WIFI and 4G to transmitted.
Specifications
| BOF-6.67 | BOF-8 | BOF-10 | |
| Physical Pitch | 6.67 mm | 8 mm | 10mm |
| Pixel Configuration | SMD 2727 | SMD 3535 | SMD 3535 |
| Pixel Density | 22,500 pixels/m² | 15,625 pixels/m² | 10,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 | 256*256 | 320*320 |
| Panel Dimensions(mm) | 1280*960*150 | 1280*768*150 | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 | 5*3 | 4*3 |
| Physical Resolution of Module (W*H) | 48*48 | 32*32 | 32*32 |
| Physical Resolution of Panel (W*H) | 192*144 | 160*96 | 128*96 |
| Panel Material | Steel/ Aluminum | Steel/ Aluminum | Steel/ Aluminum |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Brightness | >6,500 nits | >6,500 nits | >6,500 nits |
| Weight (kg/m²) | 65/45 | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit | 16 bit |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| IP Rating | IP65/ IP54 | IP65/ IP54 | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
V:160 degree H: 140 degree |
V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel | 360/900W/ panel | 360/900W/ panel |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
Procesure Details
IP65 Waterproof, adjustment the all kinds of weathers.
2. In Installation (Easy maintanance and Fast installation)
3. 4G/ WIFI / USB Control system ( the details )
Widely Application:

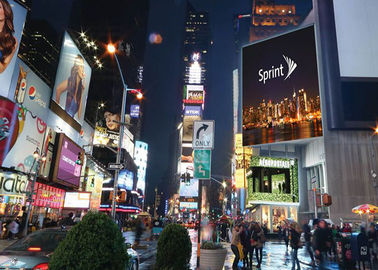

Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
FAQ
1. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
2. How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.
3. What is a custom LED display?
Custom LED displays can be designed to meet the needs of the user, taking into account all of the above for easy maintenance. Of course, maintenance can help to increase the service life of any electronic device, and measures are taken during the production process, so that maintenance costs are greatly reduced.
A custom LED display, as the name suggests, can control anything with any message you can think of. They are used in almost all industries, such as factories, banks, airports, universities, libraries, etc.
Custom LED displays are mounted on the wall or suspended from any ceiling for broadcasting information viewed from any distance. In addition, the brightness of these custom LED displays can be displayed very clearly at any distance.
4. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
