Robust Outdoor Fixed LED Display Billboard Panel 6500 Nits With Front Service
Product Details
| Material: | Die-Casting Aluminum | Light: | Nationstar |
|---|---|---|---|
| Driver IC: | MBI5124 | Usage: | Outdoor |
| Warranty: | 2 Years | Expected Lifetime: | More Than 100,000Hrs |
| Power Supply: | Meanwell | Brightness: | 6500nits |
| Highlight |
street led screen,outdoor waterproof led advertising panels |
||
Product Description
Outdoor Fixed Steel Cabinet LED Display,Robust LED Billboard Panel With Front Service
Product Description
● Robust, Sturdy, Conventional, Outdoor Advertising Display
● Conventional DOOH Display
● Stable and Durable
● Mechanical Front Access
● Concave, Convex with Any Angles
Parameters:
| Pixel Pitch | P4.81 | P6.67 | P8 | P10 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size | 250*250 | 320*320 | 256*256 | 320*320 |
| Cabinet Size | 1000*1000*150 | 1280*960*150 | 1280*768*150 | 1280*960*150 |
| Module Resolution | 52*52 | 48*48 | 32*32 | 32*32 |
| Cabinet Weight | 65/45kg | |||
| Cabinet Material | Steel/ Aluminum | |||
| Gray Scale | 16 bit | |||
| Contrast Ratio | 2000:1 | |||
| View Angle(H/V) | 160°/ 140° | |||
| Refresh Rate | ＞1920Hz | |||
| Brightness | ＞6500nits | |||
| IP Rating | IP65 / IP54 | |||
| Servicing | Front / Rear | |||
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% | |||
| Expected Lifetime | 100,000Hrs | |||
| Average Power Consumption | 360W/ Panel | |||
Features:
Multifunctional Module Buckle
● Special multifunctional module buckle designed for adjusting gaps between module
and cabinet to ensure the smoothness and alignment.
Fast Installation and Easy Maintenance
● Fast lock system design guarantees a quick and easy installation
● Front access
Outdoor Rated
● IP65 rating for front and rear
● Suitable brightness adjustable for outdoor day and night
● Strong and high bright LED
Intelligent Software System
● Intelligent control and player system by cloud technology
● Time management and real time monitoring

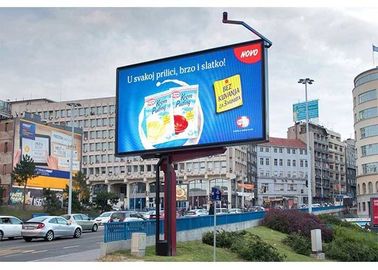

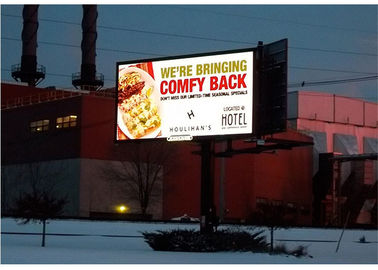

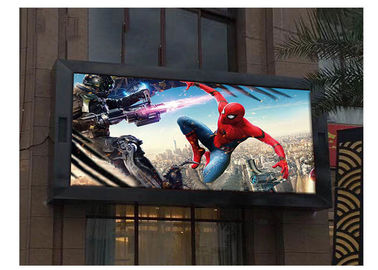

Case:
Company Introduction:
LED Vision Technology Limited , started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
