Advertising Indoor Fixed Transparent Led Wall , See Through Led Screen 5500 Nits
Product Details
| Module Size: | 480mm X 320mm | Panel Size: | 960mm X 640mm |
|---|---|---|---|
| Weight: | 10kg/ Sqm | Refresh Rate: | 1920 Hz |
| Brightness: | 5500 Nits | Control System: | Nationstar |
| Highlight |
clear led screen,transparent glass led display |
||
Product Description
Advertising Indoor Fixed Transparent Led Wall See Through Led Screen
Features:
1. Good visualization
Glassbased design allows the light to pass through the glass without any influence to the building
structure around.Transparency of the glass screen can up to 80%.
2. Ultra-thin, and ultra-light.
Thickness 35mm and 10 kg per sqm.
High brightness, and high definition.
The brightness is over 5500 nits/m2.
3. Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
4. Saving lighting costs of the whole building.
Besides good advertising effect, LED glass display also helps lighting the glass wall, thus makes the
glass wall more attractive and saving a lot lighting cost.
5. Wide use range.
Wherever the glass wall is, glass LED display can be installed. Such as bank, supermarket, theater,
business street, elevator, hotel and coffee house, etc.
6. High transparency.
High transparency with 60%~80% for front and back. Perfect cabinet design for special application.

7. Delicate structure
The cabinet is designed with delicate structure and the the cabinet is ultra thin, ultra light and strong. the tickness is only 40mm thickness.

8. Fast lock design,easy installation.
With fast lock design, allows for easy assembly and disassembly. It is very easy for cabinet connection in just a few seconds.

Parameters:
| Pixel Pitch | 3.75x6.67mm | 3.75x8mm | 5x6.67mm | 5x8mm |
| Pixel Configuration | SMD 1921 | SMD 1921 | SMD 3528 | SMD 3528 |
| Pixel Density | 39,900 pixls/m² | 33,250 pixls/m² | 30,000 pixls/m² | 25,000 pixls/m² |
| Module Dimension | 480 x 320 mm | |||
| Panel Dimention | 960 x640 mm | |||
| Resolution of Module | 128 x48 | 128 x 40 | 96 x 48 | 96 x 40 |
| Panel Material | Aluminum | |||
| Weight | 11 kg/m² | 10.2 kg/m² | 10 kg/m² | 9.5 kg/m² |
| Gray Scale | 16 bits(281 trillion colors) | |||
| Conntrast Ratio | 2000 : 1 | |||
| Average ower Consumption | 207 W/sqm | 201 W/sqm | 209 W/sqm | 203 W/sqm |
| Max ower Consumption | 690 W/sqm | 670 W/sqm | 696 W/sqm | 670 W/sqm |
| Refresh Rate | 1920 Hz | |||
| Brightness | 5500 nits | |||
| Expected Lifetime | 100,000 Hrs | |||
| IP Rating(front/rear) | IP30 | |||
| Servicing | Rear | |||
| Certification |
CCC,CE,ETL,FCC |
|||

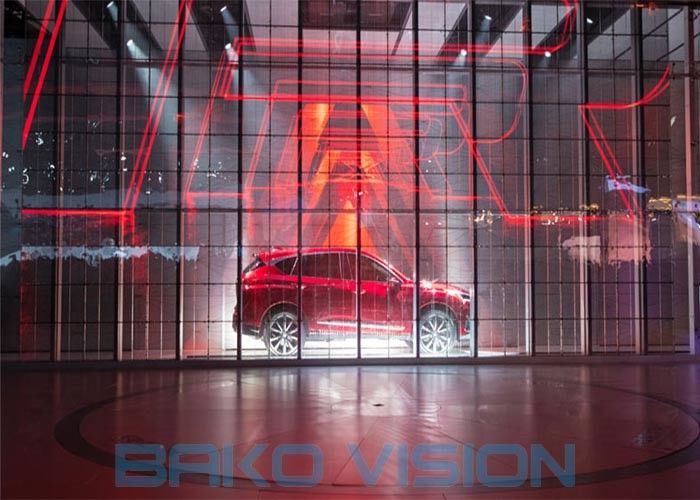

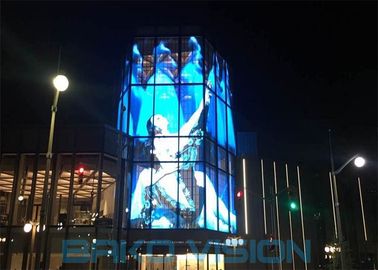

Where can we use it?

About Our Company:
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
