1000x1000mm Outdoor Fixed LED Display Screen IP65 LED Sign Board Novastar Control System
Product Details
| Cabinet Material: | Steel / Aluminum | Module Size: | 250 X 250mm |
|---|---|---|---|
| Cabinet Size: | 1000 X 1000mm | Brightness: | 6500 Nits |
| LED Type: | Kinglight | Control System: | Novastar |
| Highlight |
street led screen,outdoor waterproof led advertising panels |
||
Product Description
1000 x 1000mm Outdoor Fixed LED Display Screen IP65 LED Sign Board
Features:
1. Good heat dissipation
Best power supply, both energy-efficient and durable. It offers unparalleled stability and reliability. And, the cooling system enable it to withstand even scorching summer heat.
2. Robust Cabinet
Endure a gauntlet of environmental and quality tests to ensure their robustness and reliability.
3. Against Outdoor Envioronment
BOF series is IP65/54 validated as dust-and water-proof,delivers brightness levels up to 6,500nits and an ultra-wide viewing angle to give audience clear visual effect in any weather condition, auto-adjusted brightness according to day and night.
4. Intelligent Software System
Time management and real time monitoring by intelligent control and player system by cloud technology.
5. Seamless Assembly
Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.
Technical support:
1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
5. multi-language software Guidance
Parameters:
| Pixel Pitch | 4.81mm | 6.67mm | 8mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 43,264pixels/m² | 22,500pixels/m² | 15,625pixels/m² |
| Moduel Demensions(mm) | 250 x 250 | 320 x 320 | 256 x 256 |
| Panel Demension(mm) | 1000x1000x150 | 1280x960x150 | 1280x960x150 |
| Resolution of Module | 52 x 52 | 48 x 48 | 42x42 / 42x84 |
| Grey Level | 16 bits(281 trillion colors) | ||
| Single Cabinet Weight | 65/45kg | ||
| Contrast Ratio | 2000 :1 | ||
| Brightness | 6500 nits | ||
| Refresh Rate | 1920Hz | ||
| Average Power Consumption | 360 W/panel | ||
| Max Power Consumption | 900 W/panel | ||
| Viewing angle(H/V) | 140°/160° | ||
| Servicing | Front / Rear | ||
| Max Hanging | 20/10 | ||
| Expected Lifetime | 100,000 hours | ||
| IP Rating (Front/Rear) | IP 65/IP 54 | ||
| Operating Temp/Humidity | -20℃~50℃ / 10%~90% | ||
| Storage Temp/Humidity | -20℃~50℃ / 10%~90% | ||
| Certification | CCC, CE, ETL, FCC | ||

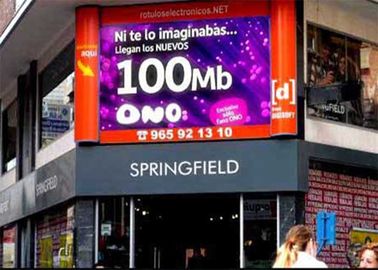

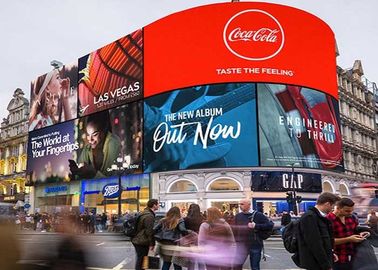

Cases:
FAQ:
1. How can you ensure the led display product quality?
Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.
2. What is your terms of payment?
T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.How to choose a proper led screen for need?
You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?
2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?
4. How to install it after received?
We will offer you the drawing to guide you for installation, even send our engineer to you for help if needed.
About us:
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
