| Cabinet Material: | Steel / Aluminum | Module Size: | 250 X 250mm |
|---|---|---|---|
| Cabinet Size: | 1000 X 1000mm | Brightness: | 6500 Nits |
| LED Type: | Kinglight | Control System: | Novastar |
| High Light: | led digital billboard,outdoor led billboard |
||

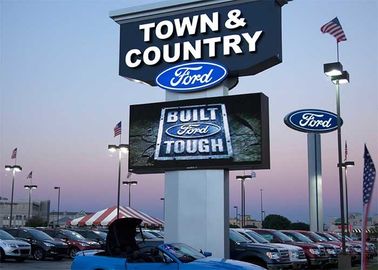

P8 Waterproof Outdoor LED Billboard Customized LED Screen Novastar System
Features:
1. Strong and high bright LED for outdoor use.
2. Suitable brightness adjustable for outdoor day and night by light sensor.
3. IP65 rating to ensure normal working in outdoor envioronment.
4. Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.
5. Intelligent control and player system by cloud technology
6. Time management and real time monitoring.
Warranty:
We provide 2 years warranty. During this period, we provide free parts for replacement , but we will charge you productive cost for the parts when the warranty expires.
Parameters:
| Pixel Pitch | 4.81mm | 6.67mm | 8mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 43,264pixels/m² | 22,500pixels/m² | 15,625pixels/m² |
| Moduel Demensions(mm) | 250 x 250 | 320 x 320 | 256 x 256 |
| Panel Demension(mm) | 1000x1000x150 | 1280x960x150 | 1280x960x150 |
| Resolution of Module | 52 x 52 | 48 x 48 | 42x42 / 42x84 |
| Grey Level | 16 bits(281 trillion colors) | ||
| Single Cabinet Weight | 65/45kg | ||
| Contrast Ratio | 2000 :1 | ||
| Brightness | 6500 nits | ||
| Refresh Rate | 1920Hz | ||
| Average Power Consumption | 360 W/panel | ||
| Max Power Consumption | 900 W/panel | ||
| Viewing angle(H/V) | 140°/160° | ||
| Servicing | Front / Rear | ||
| Max Hanging | 20/10 | ||
| Expected Lifetime | 100,000 hours | ||
| IP Rating (Front/Rear) | IP 65/IP 54 | ||
| Operating Temp/Humidity | -20℃~50℃ / 10%~90% | ||
| Storage Temp/Humidity | -20℃~50℃ / 10%~90% | ||
| Certification | CCC, CE, ETL, FCC | ||
Cases:
FAQ:
1. How can you ensure the led display product quality?
Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.
2. What is your terms of payment?
T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.How to choose a proper led screen for need?
You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?
2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?
4. How to install it after received?
We will offer you the drawing to guide you for installation, even send our engineer to you for help if needed.
