Product Details:
Payment & Shipping Terms:
|
| Brightness: | 5,000nits | Contrast Ratio: | 4000:1 |
|---|---|---|---|
| Viewing Angle: | V:160 Degree / H: 140 Degree | Operating Temp/: | -20ºC-50ºC/10%-90% |
| Colors: | 281 Trillion | Driving Method: | 1/16 |
| High Light: | roadside led display,outdoor waterproof led advertising panels |
||
Surpport USB/3G/ 4G/ WIFI Digital Taxi Roof LED Advertising Billboards.
Products Feature
Specifications
| BT-2 | BT-3 | BT-5 | |
| Physical Pitch | 2.5mm | 3mm | 58mm |
| Pixel Configuration | SMD 2121 | SMD 2121 | SMD 2727 |
| Pixel Density | 160,000 pixels/m² | 111,111 pixels/m² | 40,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 160*160 | 192*196 | 160*160 |
| Screen Size(mm) | 960*320 | 768*288 | 960*320 |
| Screen Resolution | 384*128 | 256*96 | 192*64 |
| Panel Material | Aluminum | Aluminum | Aluminum |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Screen Weight | 26kg | 15kg | 23kg |
| Processing | 16 bit | 16 bit | 16 bit |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| IP Rating | IP65 | IP65 | IP65 |
| Viewing Angle | V:160 degree H: 140 degree | V:160 degree H: 140 degree | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -40ºC-70ºC/ 10%-90% | -40ºC-70ºC/ 10%-90% | -40ºC-70ºC/ 10%-90% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% |
| Frame Size(mm) | 1,100(L)*410(H) 164(bottom)/99(top) | 820(L)*390(H) 170(bottom)/99(top) | 1,100(L)*410(H) 164(bottom)/99(top) |
| Avg./ Max. Power Consumption | 180/480W/ set | 180/480W/ set | 180/480W/ set |
| Servicing | Back | Back | Back |
Our BT product
Built-in Delay Protector
The Built-in delay protector prevents the screen from over-temperature, over-current, over-voltage impacting when the car starts.
Easy maintenance& IP65 design&long Lasting Display
Wide viewing angle led screen outdoor

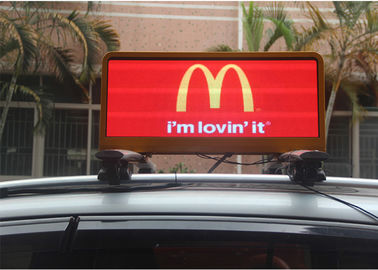

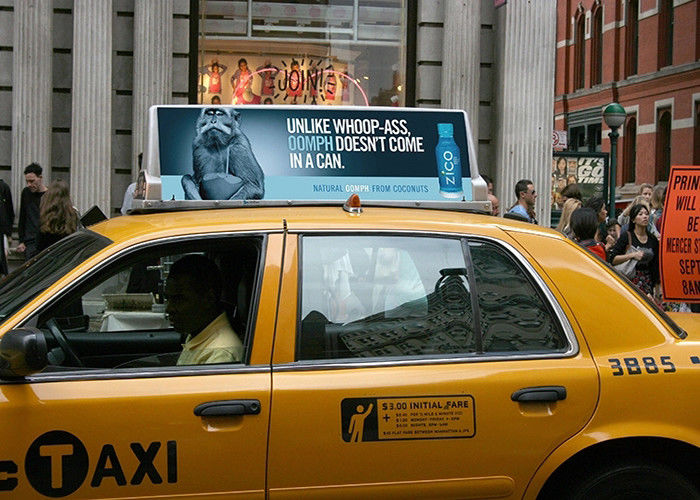

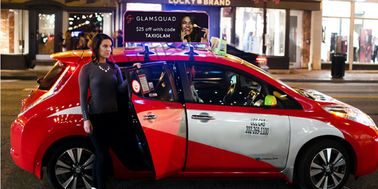

LED Taxi roof/ top Display.
Moving sign is placed in the rear window, rear tail or on the roof of thecar, including LED modules, control systems and border frame.Taxis and buses are city public transportation vehicles throughout cities.They can display traffic information with moving signs; also become a new mobile media. The main application areas: taxi, bus, car, bus stops etc.

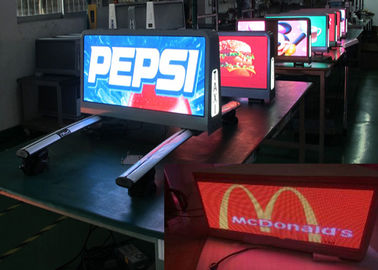

Production line
Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products w
ith good service for our clients.
