| Module Size: | 250 X 250mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Gray Scale: | 16bit | Pixel Pitch: | P3.91,P4.81,P5.95,P6.25 |
| Refresh Rate: | 1920 Hz | Brightness: | 6000 Nits |
| High Light: | events led display,led rental display |
||
Front / Rear Service Outdoor Rental LED Display with CE Certification
BOR series is Die cast aluminum LED screen which mainly used for outdoor events.It’s highly combined to make maximum assured the product compatibility & universality to be perfectly used for stage shows,company events,wedding hall etc.
Features:
1. Variable Cabinet Size Combination
500 x 500mm & 500 x 1000mm flexibility to meet stage creativity demanding
2. Slim and Lighter Cabinet
Die-casting Aluminum cabinet,slim and lightweight,more convenient on transportation and installation
3. Variable Installation
Support inner and external curved installation
Support hanging,standing installation,etc
4. High Brightness
High brightness reaching the audience from far away and working long time without fault. High resolution and ultra high brightness output ensures to deliver super contrast levels, even in the brightness of sunlight.
5. IP65 Waterproof coating
It has protection system with the waterproofing capacity. New ultra design, suitable for outdoor live show, brightness adjustable facing the sunshine directly.
6. Cost Saving for Installation
Dual-maintenance, fan less, noiseless, low power consumption.
7. Support all Media Format
Also support DVI/HDMI/3G/HD/SDI display mode, applicable for TV program, VCD/DVD and live show. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet.
Parameters:
| Pixel Pitch | 3.91mm | 4.81mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2525 | SMD2525 |
| Pixel Density | 65,536pixels/m² | 43,264pixels/m² | 28,224pixels/m² |
| Moduel Demensions(mm) | 250x250 / 250x500 | ||
| Panel Demension(mm) | 500x500 / 500x1000 | ||
| Resolution of Module | 64x64 / 64x128 | 52x52 / 52x104 | 42x42 / 42x84 |
| Grey Level | 16 bits(281 trillion colors) | ||
| Single Cabinet Weight | 8/15kg | ||
| Contrast Ratio | 4000 :1 | ||
| Brightness | 6000 nits | ||
| Refresh Rate | 1920Hz | ||
| Average Power Consumption | 75/150 W/panel | ||
| Max Power Consumption | 225/550 W/panel | ||
| Viewing angle(H/V) | 160°/ 140° | ||
| Max Stacking | 20/10 | ||
| Max Hanging | 20/10 | ||
| Expected Lifetime | 100,000 hours | ||
| IP Rating (Front/Rear) | IP 65/IP 54 | ||
| Certification | CCC, CE, ETL, FCC | ||

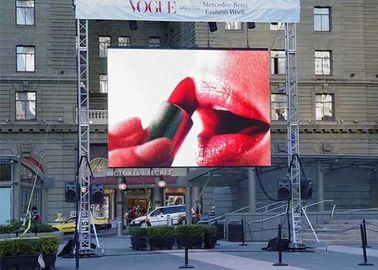

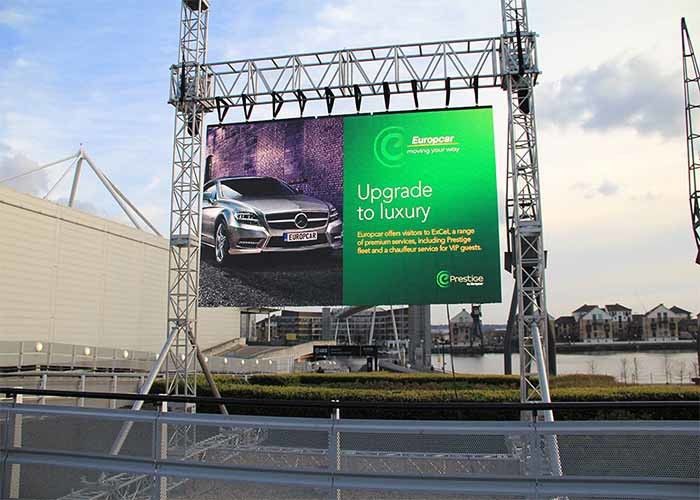

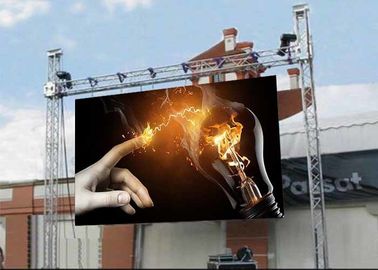

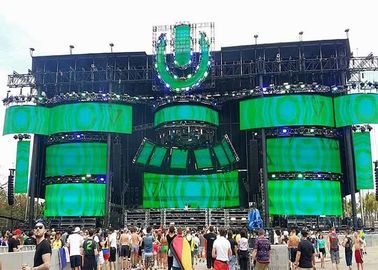

Project Reference:
FAQ:
1. How long is the warranty period ?
We provide 2~3 years warranty and free repair service for our products sold.
2. Is Available to print customer required logo on your LED product ?
Surely it is .Please inform and confirm the logo details with our team ahead of the production.
3. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
4. Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
5. Why choose bako vision?
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
