Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 1.9mm,2.5mm | Panel Material: | Aluminum |
|---|---|---|---|
| Refresh Rate: | ≥3840 Hz | Servicing: | Front Service |
| IP Rating: | IP40 | Frame Rate: | 60 Fps |
| High Light: | mirror led display,led poster display |
||

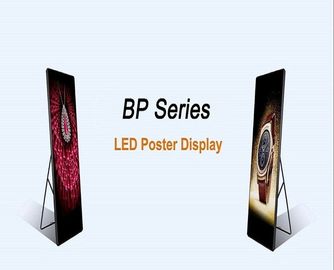

BP Series
Slim,Form Changeable
Digital Ads Display
ONLY 26 KG WEIGHT
ONLY 33 MM THICKNESS
Multi-installation
Suitable for lifting, wall-mounted, floor-standing adn creative installation like inclined struct installation
Base with wheels
Control method
It could contro by Mobile phone, Computer, WIFI, USB.
Multi-application
Applied in shopping mall, meeting room, control center, airport, station, super market, canteen and restaurant. Can be used as → Advertising platform;
→ Urgent information, instant message release
→ Publicity platform, brand model window
→ Shopping guide information, supporting service information release
Simple and Easy Maintenance
→Simply assembled
→Magnetic modules for front access
Specification
| BP-2.5 | |
| Physical Pitch | 2.5 mm |
| Pixel Configuration | SMD 2020 |
| Pixel Density | 279,936pixels/m² |
| Module Dimensions (W × H)(mm) | 280 × 210 |
| Panel Dimensions (mm) | 1897× 5721 × 33 |
| NO .of Modules Per Panel (W × H) | 2 × 9 |
| Physical Resolution of Panel (W × H) | 929 × 216 |
| Panel Material | Aluminum |
| Single Cabinet Weight | 26kg |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 250 W/ Set |
| Max Power Consumption | 750 W / Set |
| Brightness | 1,000 nits |
| Refresh Rate | ≥3,840 Hz |
| Vertical Viewing angle | 160° |
| Horizontal Viewing Angle | 140° |
| IP Rating (Front/Rear) | IP40 |
| Frame Rate | 60 fps |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| Brightness level | Manually/Auto/Programmable |
COMPANY INTRODUCTION
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
