Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 4.81mm | Pixel Density: | 43,264 Pixels/m² |
|---|---|---|---|
| Panel Dimensions: | 960 X 960 X 150mm | Single Cabinet Weight: | 65kg |
| Refresh Rate: | >1920Hz | Brightness: | >6500nits |
| Contrast Ratio: | 2000:1 | Panel Material: | Steel |
| Highlight: | roadside led display,outdoor waterproof led advertising panels |
||
Waterproof Outdoor Led Billboard for Advertising and Billboard
Quick Details:
1, Pixel Pitch: 4.81mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: 960 x 960 x 150mm, weight: 65kg for steel frame.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2years.
Description:
Bako outdoor led digital billboards pixel include 4.81mm, 6.67mm, 8mm,10mm,16mm, within these pixels, 4.81mm is the most hot-selling and highest cost-effective series.
Features and Advantages:
Specification:
| Physical Pitch | 4.81mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 43,264 pixels/square meter |
| Module Dimensions(W x H) (mm) | 250 x 250 |
| Panel Dimensions (mm) | 1000 x 1000 x 150 |
| Physical Resolution of Panel (W x H) | 208 x 208 |
| Panel Material | Steal / Aluminum |
| Weight (kg/square meter) | 65 / 45 |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W /panel |
| Max Power Consumption | 900 W /panel |
| Brightness | >6,500 nits |
| Refresh Rate | >1,920 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC |
| Storage Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC |

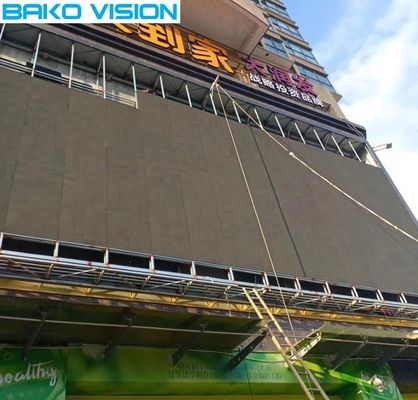

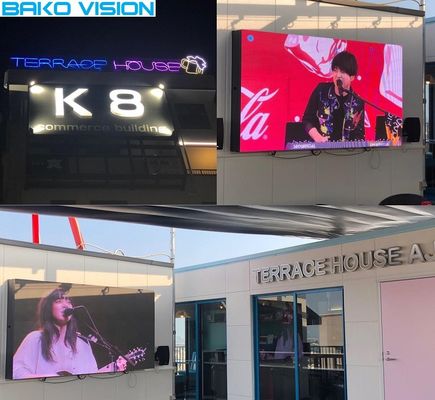

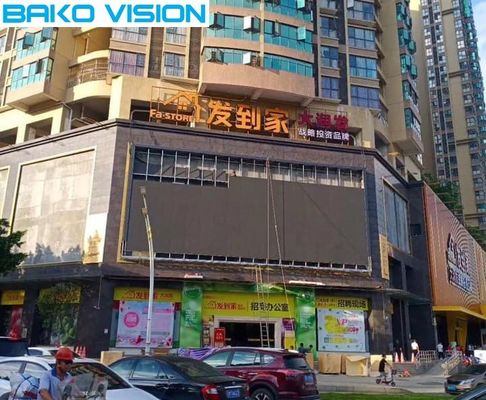

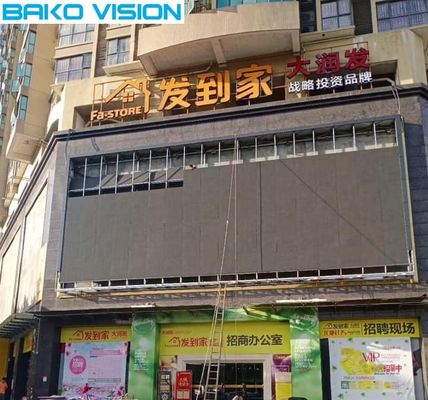

Case:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
