Nationstar P10mm Outdoor Fixed LED Display Robust Steel 160/140 Degree Viewing Angle

China Nationstar P10mm Outdoor Fixed LED Display Robust Steel 160/140 Degree Viewing Angle supplier
Nationstar P10mm Outdoor Fixed LED Display Robust Steel 160/140 Degree Viewing Angle supplier Nationstar P10mm Outdoor Fixed LED Display Robust Steel 160/140 Degree Viewing Angle supplier Nationstar P10mm Outdoor Fixed LED Display Robust Steel 160/140 Degree Viewing Angle supplier

Large Image :  Nationstar P10mm Outdoor Fixed LED Display Robust Steel 160/140 Degree Viewing Angle

Product Details:

Place of Origin: China
Brand Name: Bako
Certification: CCC,CE,UL,ETL
Model Number: BOF Series

Payment & Shipping Terms:

Minimum Order Quantity: 1㎡
Price: $399~999
Packaging Details: Flight Case/Plywood case
Delivery Time: 15-25days
Payment Terms: L/C, D/P, T/T
Supply Ability: 8000 square meter per month
Contact Now
Detailed Product Description
Physical Pitch: 10mm Panel Dimensions: 960 X 960 X 150mm
Refresh Rate: >1920Hz Brightness: >6500nits
Contrast Ratio: 2000:1 IP Rating: IP65
High Light:

roadside led display

,

outdoor waterproof led advertising panels

Waterproof Outdoor Led Billboard for Advertising and Billboard

Fixed Led Screen Quick Details:

1, Pixel Pitch: 8mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: 1280×960x150mm, weight: 65kg for steel frame.
5, Recommended minimum viewing distance: 10m.
6, Warranty: 2years.

Fixed Led Screen Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm, 8mm,10mm, you can use it on building or billboard. Even you can use it on truck/car as mobile screen.

Fixed Led Screen Features and Advantages:
1, High brightness from 6,500nits to 9,000nits, visible from every direction even face to direct sunshine.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and assemble job.

4, IP65 waterproof and dust resistance, durable for any weather condition.
5, Meanwell brand power supply, saving energy and high efficiency.

6, Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7, Front access make easy maintenance.
8, There can improve the resolution by changing new module with small pixel, no need to purchase new screen,this can save lots of cost.


Fixed Led Screen Specification:

Physical Pitch 10mm
Pixel Configuration SMD3535
Pixel Density 10,000 pixels/Square Meter
Module Dimensions(W x H) (mm) 320 x 320
Panel Dimensions (mm) 960 x 960 x 150
Physical Resolution of Panel (W x H) 128 x 96
Panel Material Steal
Weight (kg/Square Meter) 65 / 45
Processing 16bit
Colours 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 360 W /panel
Max Power Consumption 900 W /panel
Brightness >6,500 nits
Refresh Rate >1,920 Hz
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54
Operating Temp/Humidity -20ºC - 50ºC / 10ºC - 90ºC
Storage Temp/Humidity -20ºC - 50ºC / 10ºC - 90ºC

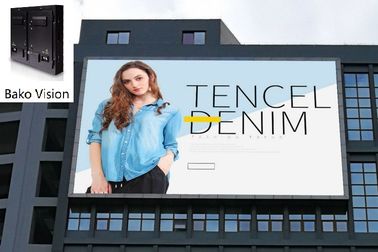

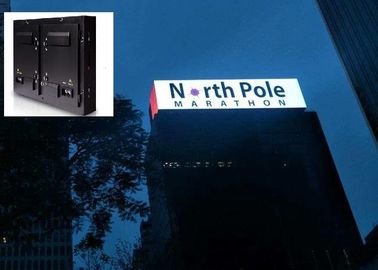

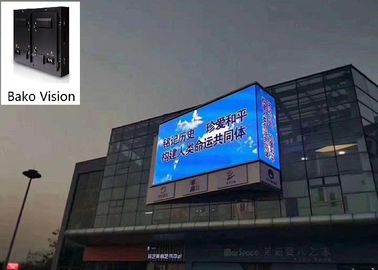

Fixed Led Screen Case:



Nationstar P10mm Outdoor Fixed LED Display Robust Steel 160/140 Degree Viewing Angle 0


Our service


Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!

Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
