Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Light: | Nationstar |
|---|---|---|---|
| Driver IC: | MBI5124 | Usage: | Taxi Top Ads |
| Warranty: | 2 Years | Module Size: | 160mm*160mm |
| Weight: | 26kg | Brightness: | 5000nits |
| High Light: | mobile led display truck,truck mounted led screen |
||

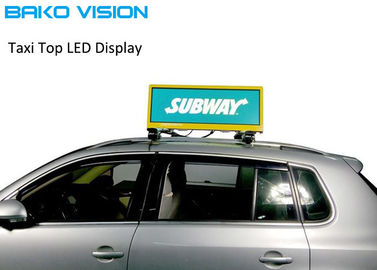

Taxi Top Mobile Advertising LED Display Double Sided Digital Moving Billboard 5500 Nits
Mobile led screen Features:
● Taxi Top Advertising Display,Digital Moving Billboard. 3G, 4G, WIFI, GPS Transmission
● Outdoor Waterproof
● High Brightness, Wide Viewing Angle
● Digital Moving Text, Graphics, Commercial Ads
● Light Weight
● Single or Double Sided
● 3G, 4G, WIFI, GPS Transmission
Mobile led screen Parameters:
| Pixel Pitch | P2.5 | P3 | P5 |
| LED Type | SMD2121 | SMD2121 | SMD2727 |
| Module Size | 160*160 | 192*196 | 160*160 |
| Screen Size | 960*320 | 768*288 | 960*320 |
| Screen Resolution | 384*128 | 256*96 | 192*64 |
| Cabinet Weight | 26kg | 15kg | 23kg |
| Cabinet Material | Aluminum | ||
| Frame Size |
1100(L)*410(H) 164(bottom)/99(top) |
820(L)*390(H) 170(bottom)/99(top) |
1100(L)*410(H) 164(bottom)/99(top) |
| Gray Scale | 16bit | ||
| Contrast Ratio | 4000:1 | 4000:1 | 2000:1 |
| Brightness | 3500nits | ||
| View Angle(H/V) | 140°/160° | ||
| Refresh Rate | ＞1920Hz | ||
| IP Rating | IP65 | ||
| Average Power Consumption(W/㎡) | 180W/Set | 80W/Set | 150W/Set |
| Maximum Power Consumption(W/Sqm) | 480W/Set | 250W/Set | 450W/Set |
| Servicing | Front/Rear | ||
Mobile led screen Description:
IP65 High Protection
● Waterproof and dustproof
● For all weather conditions
Multiple Communication Methods
● 3G, 4G, WIFI, GPS, USB, cable transmission
High Brightness
● 3500-7000 nits brightness
● High bright SMD
● High efficiency PSU
Built-in Delay Protector
● The Built-in delay protector prevents the screen from over-temperature, over-current, over-voltage impacting when the car starts.
Company Introduction:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ:
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
