Product Details:
Payment & Shipping Terms:
|
Colors: | 281trillion | IP Rating: | IP65 |
---|---|---|---|
Physical Pitch: | 8mm | Pixel Density: | 15,625 Pixels/m² |
Panel Dimensions: | 1280×768×150mm | Single Cabinet Weight: | 65/45kg |
Refresh Rate: | >1920Hz | Brightness: | >6500nits |
Highlight: | roadside led display,street led screen |
Waterproof IP65 P8mm Front Service Outdoor Studry Robust Fixed LED Display for Advertising
Quick Details:
1, Pixel Pitch: 8mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: 1280 x 768 x 150mm, weight: 65kg for steel frame and 45kg for aluminum frame.
5, Recommended minimum viewing distance: 10m.
6, Warranty: 2years.
Description:
Bako Outdoor LED Billboards include permanent installation outdoor electronic led display, the pixel various from 4mm, 5mm, 6mm, 6.77mm, 10mm, 12mm, 16mm.
Features and Advantages:
1, High brightness from 6,500nits to 9,000nits, visible from every direction even face to direct sunshine.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and assemble job.
4, IP65 waterproof and dust resistance, durable for any weather condition.
5, Meanwell brand power supply, saving energy and high efficiency.
6, Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7, The resolution can be adjusted by changing modules.
Specification:
BOF-8 | |
Physical Pitch | 8mm |
Pixel Configuration | SMD3535 |
Pixel Density | 15,625 pixels/m² |
Module Dimensions | 256×256mm |
Panel Dimensions | 1280×768×150mm |
NO. of Modules Per Panel | 5×3 |
Physical Resolution of Module | 32×32dots |
Physical Resolution of Panel | 160×96dots |
Panel Material | Steel/Aluminum |
Single Cabinet Weight | 65/45kg |
Grayscale | 16bit |
Colors | 281trillion |
Contrast Ratio | 2000:1 |
Average Power Consumption | 360W/ panel |
Max Power Consumption | 900W/ panel |
Refresh Rate | >1920Hz |
Brightness | >6500nits |
Expected Lifetime | 100,000Hrs |
Servicing | Front/Rear |
IP Rating(Front/Rear) | IP65/IP54 |

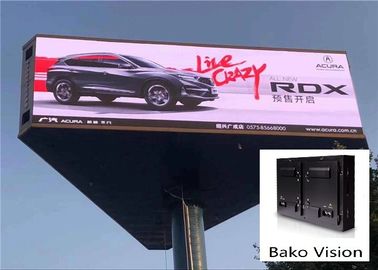

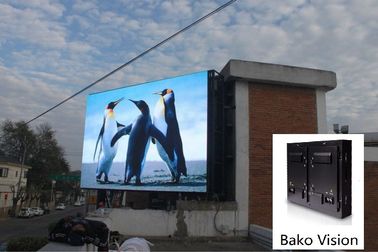

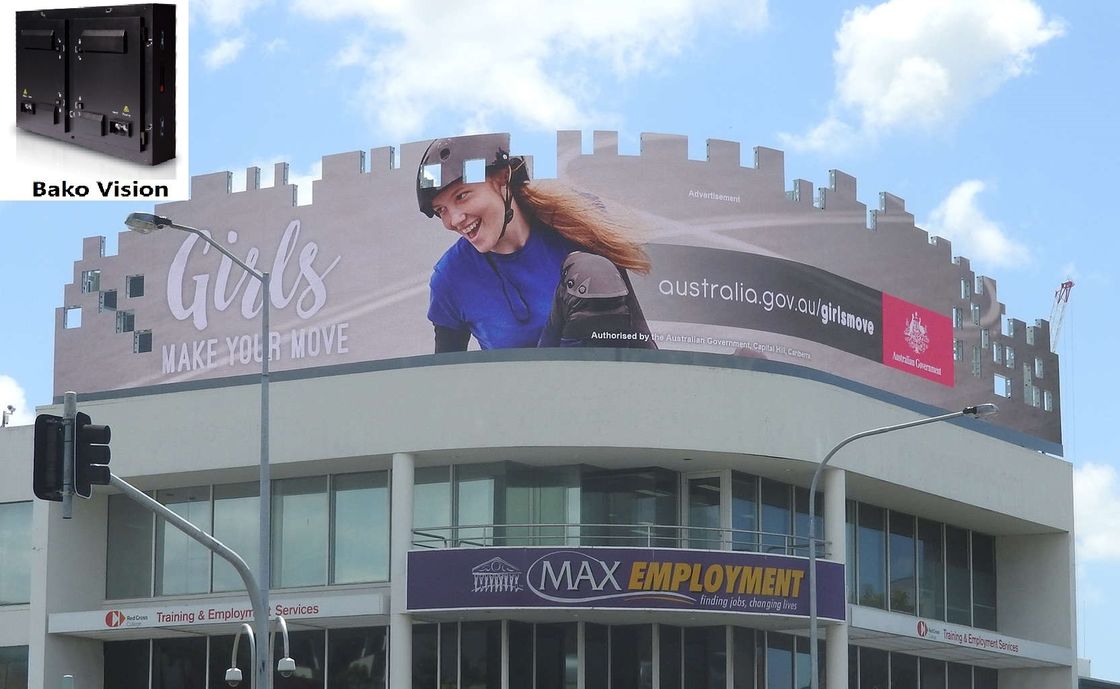

Case:
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 7-10 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
