RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B

Certification
China Shenzhen Bako Vision Technology Co., Ltd certification
China Shenzhen Bako Vision Technology Co., Ltd certification
Customer Reviews
I am very satisfied with the project of Bakovision, and I have decided to cooperate with them next time.

—— Mrs Emilia Scarlett

The production technology of Bakovision is top 5 in led display industry.

—— Mr Richard Thompson

When I visited the factory of Bakovision, I was impressed by their workshop environment.Trust Bakovision.

—— Mr Amos Aaron

The enthusiastic service from Bakovision peoples makes me feel that we are not just business partners but also friends.

—— Mrs Katherine Grady

The company are recommended by friends.They help me solved the problem.

—— Mr Baron Elvis

I am very happy to build a long-term cooperation with Bakovision. Their products have never let me down.

—— Mr Blithe Gavin

I'm Online Chat Now

RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B

RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B
RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B

Large Image :  RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B

Product Details:

Place of Origin: CHINA
Brand Name: BAKO VISION
Certification: CCC, CE, ETL, FCC, TUV
Model Number: BOC

Payment & Shipping Terms:

Minimum Order Quantity: 1Sqm
Packaging Details: Wooden case/ Freight case
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 10, 000 Sqm/Month
Detailed Product Description
Unite Size (W*H)(mm): >=1500*250 Physical Resolution Of Unit (H*V): 60*5
Viewing Angle: V:140 Degree / H: 120 Degree Weight: 8.5kg / M²
Colors: 281 Trillion IP Rating(Front/ Rear): IP67
Brightness: >6,500 Nits Expected Lifetime: >=100,000hrs
Operating Temp/ Humidity: -10ºC-60ºC/10%-60%
High Light:

led mesh screen

,

led facade display

RGB Glass Wall High Transparency Outdoor Curtain Video LED Display IP67 160 Degree



Item Feature

20%-80% great transparency rate
See through, i
t is installed close to the glass of shop window or large glass building wall. Looks like a totally transparent led video wall from far aways when more than 10m.

Super slim and less weight
Without any steel structure frame. You can install it like a window-shades.

Increase transparency and exposure, with good visibility
Have a good visual effect and save space, >5000 nits brightness, for all outoor environment.

Wind resistant,Only 8.5kg/m², Can reduce the load-bearing of glass
Exceptionally lightweight an slim, requires little space for the installation



Specifications



  BOC-2550
Physical Pitch 25mm (H),50mm (V)
Pixel Configuration 1R1G1B
Pixel Density                                800 pixels/m²
Unite Size (W*H)(mm) >=1500*250
Weight(kg/m²) 8.5 kg/m²
Physical Resolution of Unit (H*V) 60*5
Colors 281 trillion
Processing 16 bit
Contrast Ratio 2000:1
IP Rating IP67
Viewing Angle H:120°,V:60°
Panel Material Alumium
Expected Lifetime                                  100,000Hrs
Operating Temp/Humidity                        -30ºC-60ºC/10%-90%
Storage Temp/Humidity                         -40ºC-85ºC/10%-95%
Avg/Max Power Consumption 85/255 /W/m²
Servicing Front / Rear
Refresh Rate >3840 Hz
Avg/Max. Power Consumption 207/690 W/m²
Brightness >5,000 nits

Proucts detail

RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B 0



Stability and reliability
Special patented technology of inlaying SMD into PCB, the stability is much better than other similar products in the market.

Screen life time is increased significantly.



If you want to know about that how to install the curtain led display, pls click the picture as follow and then you will get the video↓↓↓↓↓↓



RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B 1



Fast installation and Easy Maintenance

Glass led video wall led display is stable and safe when light on. Only take out one led bar loosing the bracket,you can easily change the defective leds within 30s.

Steel frame is canceled during installation



RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B 2



Cost saving

Simple steel frame structure, indoor maintenance, lightweight products, easy installation, a large number of installation costs. It also saves the cost of building lighting, which can not only replace the exterior wall lighting, but also bring you advertising benefits.



RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B 3



IP67 waterproof.
IP67 for whole screen, complete waterproof for various weather conditions.

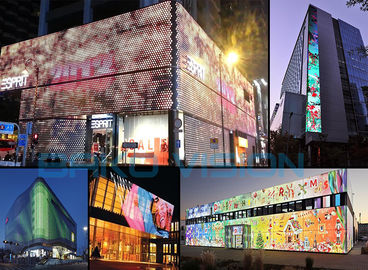

Wide applications
All kinds of building with glass window or wall, for example, Building Constyuction, stage rental, trade show, night club, wall facade, car show, srage backdrop and so on.

Our company
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.


RGB Glass Wall LED Curtain Display High Transparency IP67 160 Degree 1R1G1B 4



FAQ:



1. How to install it after I received it?

We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.



2. How could I buy the products I need if there is no price in the website and could I get some samples first?

A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.



3. What is a custom LED display?

Custom LED displays can be designed to meet the needs of the user, taking into account all of the above for easy maintenance. Of course, maintenance can help to increase the service life of any electronic device, and measures are taken during the production process, so that maintenance costs are greatly reduced.



A custom LED display, as the name suggests, can control anything with any message you can think of. They are used in almost all industries, such as factories, banks, airports, universities, libraries, etc.



Custom LED displays are mounted on the wall or suspended from any ceiling for broadcasting information viewed from any distance. In addition, the brightness of these custom LED displays can be displayed very clearly at any distance.



4. I would like to ask you if it's possible to have my logo on the product.

A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
