Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Weight: | 10kg/m² |
|---|---|---|---|
| Refresh Rate: | 3840 Hz | Average Power Consumption: | 115 W/m² |
| IP Rating: | IP67 | Expected Lifetime: | 100,000 Hrs |
| High Light: | street led screen,outdoor waterproof led advertising panels |
||

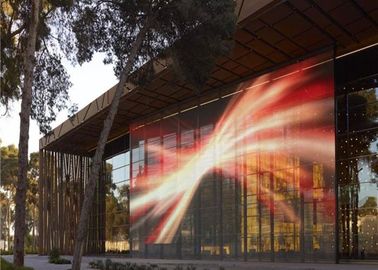

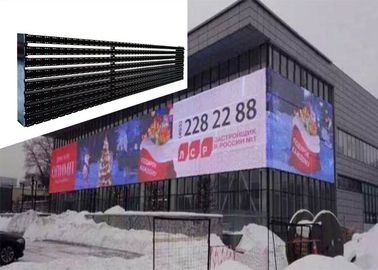

Waterproof Outdoor Fixed LED Display Building Facade Video Curtain
Parameters:
| Pixel Pitch | 25mm | 25mm(H),35mm(V) | 25mm(H),50mm(V) | 31.25mm |
| LED configuration | 1R1G1B | |||
| Pixel Density | 1,600pixel/m² | 1,120pixel/m² | 800pixel/m² | 1,024pixel/m² |
| Unit Size | ≧1500 x 250mm | |||
| Resolution of Unit | 60 x 10 | 60 x 7 | 60 x 5 | 48 x 8 |
| Panel Material | Aluminum | |||
| Cabinet Weight | 15kg/m² | 10.6kg/m² | 8.5kg/m² | 15kg/m² |
| Grey Level | 16 bit(281 trillion colors) | |||
| Contrast Ratio | 2000 : 1 | |||
| Average Power Consumption | 150w/m² | 115w/m² | 85w/m² | 107w/m² |
| Max Power Consumption | 450w/m² | 345w/m² | 255w/m² | 329w/m² |
| Refresh Rate | 3840 Hz | |||
| Brightness | 7500 nits | 6500 nits | 5000 nits | 6500 nits |
| Viewing Angle(H/V) | 120 ° / 60 ° | |||
| Life Span | 100,000 Hours | |||
| Servicing | Front / Rear | |||
| IP rating | IP67 | |||
| Operating Temp/Humidity | -30℃~60℃ / 10%~90% | |||
| Storage Temp/Humidity | -40℃~85℃ / 10%~95% | |||
| Certification |
CCC,CE,ETL,FCC,TUV |
|||
Description:
1. The protection level up to IP67 and operation temperature is between -30°C and 60°C for outdoor against different weather.
2. Different shape could be combined with amazing visual effect.
3. Super thin aluminum cabinet ensure cabinet in light weight,only 8.5 to 15kgs for each.
4. High lighting penetrated design ensure good ventilation and good heat dissipation,also reduce the wind drag.
5. Can be fixed install or hung for rental, widely used for building,stage,concert,show,exhibiton and commercial advertising.
6. High brightness for outdoor and high efficiency power supply.

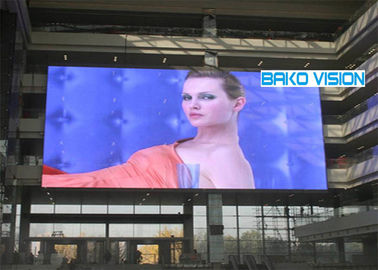

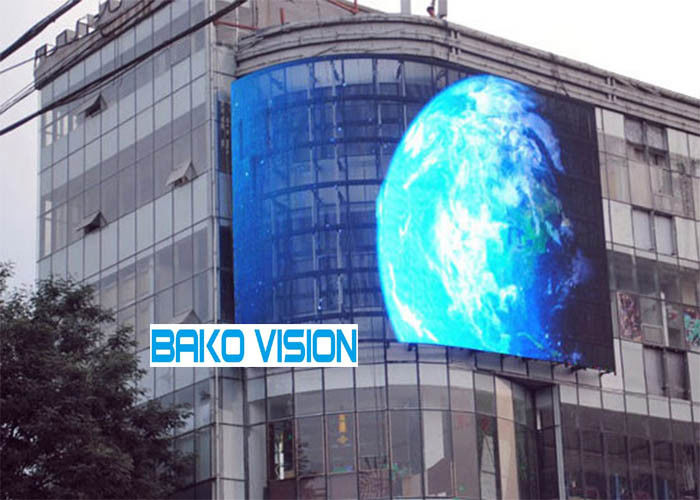

Wide Applications:
About us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
FAQ:
1. How shall I make the payment?
We accept T/T,T/C and Western Union.
2. How can I choose a proper product?
Then we need to clarify some questions firstly:
A: Where will you install this display?Outdoor or indoor/Fixed or rental?
B: How do you plan to control it?By USB or Computer?
C: What context do you want to display?
3. How do you ensure the quality?
A: We have been in LED display manufacture for more than 10 years and own our professtional team.
B: From LED to module,to cabinet,to screen and anything like power supply and control system,we have a QC team to control at every step.
C: Everytime before delivery,there will be aging testing for several days to ensure normal working.You are also welcomed to check the products in our factory.
D: We offer 2~5 years warranty and 18/7 online engineering help.
