Product Details:
Payment & Shipping Terms:
|
| Processing: | 16 Bit | Contrast Ratio: | 2000:1 |
|---|---|---|---|
| Viewing Angle: | V:140 Degree / H: 120 Degree | Operating Temp/ Humidity: | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity: | -30ºC-60ºC/10%-60% | Colors: | 281 Trillion |
| Expected Lifetime: | >=100,000hrs | Brightness: | >5,500 Nits |
| High Light: | street led screen,outdoor waterproof led advertising panels |
||

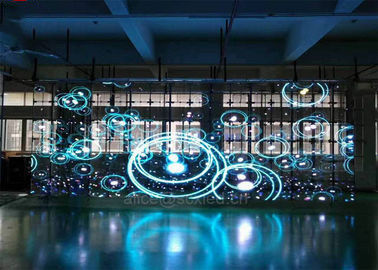

Ultra Clean See Through Outdoor Transparant LED Display SMD1921 140° Viewing Angle
Main Features
High Transparency
60-80% transparency rate among different pitches
Variable brightness options for day and night environment
Ultra-wide viewing angle
140° viewing angle, perfect display effect.
Easy installation
quick lock design, easy to assemble and maintenance.
Two in one
Both signal and power supply available.
Highly customizable
Extreme versatility
This kind of transparant LED display modules are lightweight and compact, it is highly flexible.
Make perfect portable display for temporary venues.
Specifications
| BG-3.75-8 | |
| Physical Pitch | 3.75*8mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 33,250pixels/m² |
| Module Dimensions(W*H)(mm) | 480*320 |
| Panel Dimensions(mm) | 960*640 |
| Weight(kg/m²) | 10.2kg/m² |
| Colors | 281 trillion |
| Processing | 16 bit |
| Contrast Ratio | 2000:1/ |
| IP Rating | IP30 |
| Viewing Angle | H:160°,V:140° |
| Panel Material | Alumium |
| Expected Lifetime | 100,000Hrs |
| Operating Temp/Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% |
| Servicing | Rear |
| Refresh Rate | >1920 Hz |
| Avg/Max. Power Consumption | 207/690 W/m² |
| Brightness | >5,500 nits |
Application
Widely use Building construction, Rental tour, Car show, Window display, Shopping mall, Fashion store and Hotel and so on.
