Product Details:
Payment & Shipping Terms:
|
| Refresh Rate: | 2880 Hz | Contrast Ratio: | 4000 : 1 |
|---|---|---|---|
| Module Size: | 280mm X 210mm | Cabinet Size: | 572 X 1920 X 32mm |
| Grey Scale: | 16 Bit | Control System: | Novastar |
| High Light: | led poster screen,mirror led display |
||

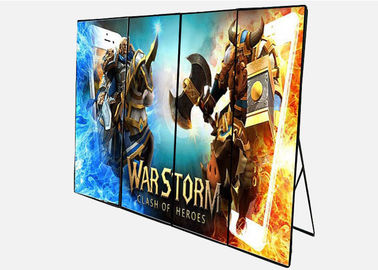

Indoor LED Poster Digital Advertising Display for Hanging and Stacking
Features:

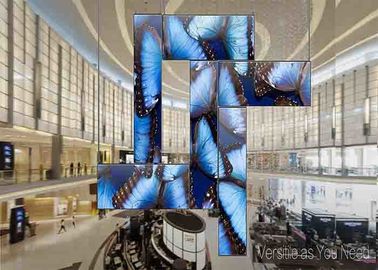

1. Multiple installation and form changeable:
Braket standing,hanging,multi-screen cascade,wall mounted,etc.
2. Ultra slim and lightweight
Slim edge 6mm,display thickness 32mm
Net weight 28kg per set
3. Superior Electrical Features
Refresh rate 2880 Hz
160 degree viewing angle
4000 : 1 contrast ratio
4. Fashional advertisement and easy to move
Bottom wheels design enable you to move the display much easily.
Parameters:
| Pixel Pitch | 1.9mm | 2.5mm |
| Pixel Configuration | SMD 1010 | SMD 2020 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² |
| Module Dimention | 160mm x 160mm | 280mm x 210mm |
| Whole Set Dimention | 640 x 1920 x 32mm | 568 x 1898 x 32mm |
| Resolution of Module | 84 x 84 | 112 x 84 |
| Panel Material | Aluminum | |
| Cabinet Weight | 28 kg | |
| Gray Level | 16 bit(281 trillion colors) | |
| Contrast Ratio | 4000 : 1 | |
| Average Power Consumption | 250W/Set | 200W/Set |
| Max Power Consumption | 750W/Set | 600W/Set |
| Driving Method | 1/32 Dynamic Scan | |
| Brightness | 1000 nits | |
| Refresh Rate | 2880 ~ 3840 Hz | |
| Viewing Angle(V/H) | 160°/ 140° | |
| Frame Rate | 60 fps | |
| Operating Temp/Humidity | -10℃~60℃ / 10%~60% | |
| Storage Temp/Humidity | -30℃~60℃ / 10%~60% | |
| IP Rating(Front/Rear) | IP40 | |
| Expected Lifetime | 100,000 Hrs | |
| Servicing | Front | |
Cases for your reference:
FAQ
Q1. Do you provide samples?Is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone,Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-3 years warranty to our products.
Why choose us?
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
