Product Details:
Payment & Shipping Terms:
|
| Format: | 16:9/4:3 | Module Dimension: | 320*160mm |
|---|---|---|---|
| Panel Material: | Die-casting Aluminum | Servicing: | Fully Front Access |
| High Light: | hd led video wall,modular led display |
||

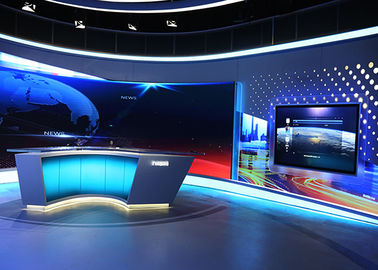

High Definition LED Display Indoor Fixed Video Wall Small Pixel Pitch 320*160mm Module
HD LED Panel Parameters
| UHD-1.2 | UHD-1.5 | UHD-1.6 | UHD-1.9 | |
| Physical Pitch | 1.25mm | 1.56mm | 1.66mm | 1.92mm |
| Pixel Configuration | SMD0909 | SMD1010 | SMD1010 | SMD1010 |
| Pixel Density | 640,000pixels/sqm | 409,600pixels/sqm | 360,000pixels/sqm | 270,000pixels/sqm |
| Module Dimensions(W*H)(mm) | 200*150 | 200*150 | 200*150 | 200*150 |
| Panel Dimensions(mm) | 400*300 | 400*300 | 400*300 | 400*300 |
| Physical Resilution of Module(W*H) | 160*120 | 128*96 | 120*90 | 104*78 |
| Physical Resolution of Panel(W*H) | 320*240 | 256*192 | 240*180 | 208*156 |
| Panel Material | Die-casting | Die-casting | Die-casting | Die-casting |
| Single Cabinet Weight | 4.6kg/panel | 4.6kg/panel | 4.6kg/panel | 4.6kg/panel |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Contrat Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 220W/sqm | 220W/sqm | 220W/sqm | 220W/sqm |
| Max Power Consumption | 800W/sqm | 800W/sqm | 800W/sqm | 800W/sqm |
| Driving Method | 1/30Scan | 1/32Scan | 1/30Scan | 1/26Scan |
| Brightness | >800nits | >800nits | >800nits | >800nits |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| IP Rating(Front/Rear) | IP40 | IP40 | IP40 | IP40 |
Small Pixel Pitch LED Screen Advantages
16:9 and 4:3 Format Options
►Each cabinet is 640mm*480mm,slim and lightweight
►16:9 or 4:3 free options
►Available for any video formats
Unsurpassed Color Uniformity
►Unique color calibration process
►Tight bin selection for LED wavelength
►Deep black levels,contrast ratio 4000:1.gray level reach to 16bit
Fast Installation and Easy Maintenance
►Slim and lightweight,easy to install,the single cabinet weight just for 4.6kg
►Cable-less between modules,internal set up pin header
►Fully front access
►Wall mounting available
Superior Electrical Features
►NR20 noise free
►Flat cable free between module and cabinet to avoid signal missing
LED Screens Packaing and Shipping
About Us
►Rich experience: established in 2005; familiar with technical and material about LED display.
►Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
►Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
►Good quality:All products have passed CE, ROHS, FCC certification.
►Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
FAQ
Q1: The warranty of your LED display ?
A: We offer 2-3 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Q2: Whats your payment term? How long it takes to delivery?
A: We normally accept T/T and L/C,and other payment options is negotiable for your convenience. A 30% deposit is needed in advance, and the rest 70% be paid before delivery. Our average lead time is 15 days.
Q3: What's the controlling system?
A: Our standard controlling system for this model is Novastar. Also support other controlling system such as Linsn, etc.
