Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 1.25mm | Driving Method: | 1/30 |
|---|---|---|---|
| Cabinet Materia: | Die Casting | Viewing Angle(H/V): | 160°/140° |
| Refresh Rate: | ≥ 1920Hz | Power Supply: | AC 110/220±10% 50~60Hz |
| High Light: | hd led video wall,modular led display |
||
SMD0909 Small Pixel Pitch HD LED Display With High Brightness Full Color
Feature
High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
The HD series owns high definition and it is made of die-casting aluminum, through CNC precision processing.Then the error is controlled within +/-0.05mm, it can achieve seamless connection.
HD/Specification
| Physical Pitch | P1.25mm |
| Pixel Configuration | SMD 0909 |
| Pixel Density | 640,000px/m2 |
| Module Dimensions(W*H)(mm) | 200*150 |
| Panel Dimensions(mm) | 400*300 |
| NO. of Modules Per Panel (W*H) | 2*2 |
| Panel Material | Die-casting |
| Colors | 281 trillion |
| Gray Scale | 16 bit |
| Pixel Failure | <0.0003 |
| Life Span | ≥50000 Hours |
| Viewing Angle(H/V) | 160°/140° |
| Driving Method | 1/30 Scan |
| Operating Temp/Humidity |
-20℃-50℃/ 10%-90% |
| Storage Temp/Humidity |
-40℃-60℃/ 10%-85% |
| MTBF | ≥1000 Hours |
| Single Cabinet Weight | 4.6 kg/ panel |
| Physical Resolution of Module(W*H)(mm) | 160*120 |
| Physical Resolution of Whole Set(W*H)(mm) | 320*240 |
| Average Power Consumption | 220w/m2 |
| Frame Refresh | ≥ 60Hz |
| Contrast ratio | 4000:1 |
● Ultra Fine Pitch, Big Screen
● For 16:9 and 4:3 Aspect Ratio
● Fully Front Access for Wall Mounting
● High Color Fidelity and High Contrast Ratio
● Cable-less Connection
● Slim and Lightweight
Excellent Viewing Angle
About us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

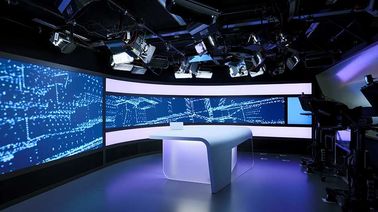

Application Case:
Widely used for shopping malls, entertainment venues, monitor center, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
