|LED Type:||Nationstar||Moduel Size:||150mm X 168.75mm|
|Cabinet Size:||600mm X 337.5mm||Refresh Rate:||2880 Hz|
|Cabinet Weight:||6kg||Cabinet Thick:||60mm|
stage led video wall,
indoor led advertising scree
Fine Pitch Indoor Fixed LED Display Die - Casting Aluminum Ultra High Definition
1. High precision, high strength
The new high-strength die-casting aluminum material make the flatness of the cabinet reaches 0.01mm after CNC,
which ensures the seamless asscembling.
2. Light weight, thin thickness
The weight of the single cabinet is only 6kg and 60mm thick.
3. 16: 9 point to point HD restore true color effect
A: Easily achieve plicing of FHD/4K/8K display screens.
B: Divide the screen,maximize the true reproduction of the playback content.
C: Eliminates the card frame and smear caused by ordinary point-to-point restoration.
4. Fast lock assembly / disassembly, save labor cost
Fast lock of cabinet enables labor to complete the installation in ten seconds with high precision.
5. Wide viewing angle, wide color gamut
A: Horizontal 160° / vertical viewing angle of 140 °, uniform high-definition display effect.
B: No color cast, no color spots, no color blocks, the picture is uniform.

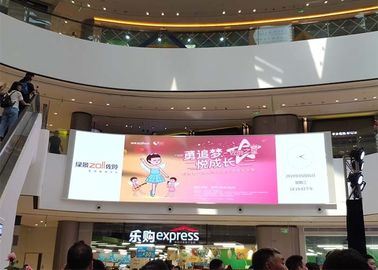

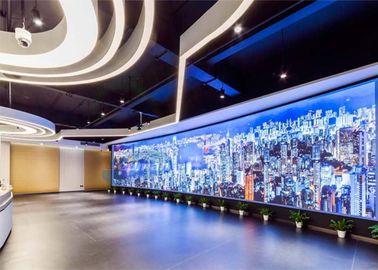

It's widely used in senior club,TV Station,airport,reception hall,fashion store,government urban
management system, radio studio, government and enterprise conference system, and indoor
advertising in large commercial centers.
|LED Type||Black SMD1010|
|Brightness||600 ~ 800 cds/m²|
|Moduel Size||150 x 168.75mm|
|Moduel Resolution||120 x 135||96 x 108||80 x 90||64 x 72|
|Cabinet Size||600 x 337.5mm|
|Cabinet Weight||6 kg|
|Viewing Angle||H 160° / V 140°|
|Refresh Rate||2880 Hz|
|Average Power Consumption||300 W/sqm|
|Max Power Consumption||600 W/sqm|
|IP rating(Front/Rear)||IP40 / IP 21|
Cases for your reference:
1. How to choose a proper led screen?
Then you need to clarify below:
A: It's for indoor or outdoor?For fixed or rental?
B: Where will you install this screen?
C: What is the distance between audients and screen?
2. Which control system should I choose?
There is both synchronous and asynchronous control system on the market of LED Display. For the big size led screen(usually more than 20sqm),it is suitable to use synchronous control system. For those displays which below
20sqm.It's up to you to use synchronous and asynchronous.
But the refresh rate of asynchronous control system is much lower than synchronous control system.
3.How about your package?
We usually pack in wooden boxes or flight case.It decide on your size and your needs.We respect your choice.
