Product Details:
Payment & Shipping Terms:
|
| Contrast Ratio: | 4000:1 | IP Rating: | IP65/IP54 |
|---|---|---|---|
| Refresh Rate: | >1920Hz | Panel Material: | Die-casting Aluminum |
| Servicing: | Front/rear | Expected Lifetime: | 100000 Hours |
| Panel Size: | 500x500x80mm | Brightness: | >6000nits |
| High Light: | outdoor led screen hire,events led display |
||

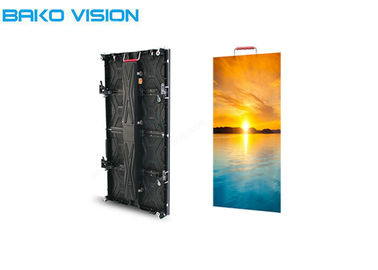

Advertising Curved Outdoor Rental LED Display High Definition With 6000 Nits
Specifications:
| BOR-III-3 | BOR-III-4 | BOR-III-5 | BOR-III-6 | |
| Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
| Pixel Configuration | SMD 1921 | SMD 2727 | SMD 2727 | SMD 2727 |
| Pixel Density |
65536 pixels/m²
|
43264 pixels/m²
|
28224 pixels/m²
|
25600 pixels/m²
|
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) |
500 × 500 ×80 500 × 1000 × 80 |
500 × 500 ×80 500 × 1000 × 80 |
500 × 500 × 80 500 × 1000 × 80 |
500 × 500 ×80 500 × 1000 × 80 |
| NO .of Modules Per Panel (W × H) | 2 × 2/2×4 | 2 × 2 /2×4 | 2 × 2/2×4 | 2 × 2/2×4 |
| Physical Resolution of Module (W × H) | 64×64 | 52×52 | 42×42 | 40×40 |
| Physical Resolution of Panel (W × H) | 128×128/128×256 | 104×104/104×208 | 84×84/84×168 | 80×80/80×160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000: 1 | 4,000: 1 | 4,000: 1 | 4,000: 1 |
| Average Power Consumption | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel |
| Max Power Consumption | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel |
| Operating Temp/Humidity | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% |
| Storage Temp/Humidity | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥6000 nits | ≥6000 nits | ≥6000 nits | ≥6000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 |
IP 65/ IP 54 |
IP 65/ IP 54 |
| Certification |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
Unsurpassed Color Uniformity
● The Unique color calibration process
● Tight bin selection for LED wavelength
● Deep black levels, contrast ratio 4000:1
Fast Installation and Easy Maintenance
→ Truss hanging and ground support both available
→ Cable-less between modules
→ Front and rear access
→ Tools free installation
Slim, Light Weight and Quiet
→500mm×500mm or 500mm×1000mm options
→ 80mm thickness
→ Fanless design
Smart Concave and Convex
● Both 500mmx500mm and 500mmx1000mm cabinets are
arc-able
● 0°-10° concave and convex degree
