Product Details:
Payment & Shipping Terms:
|
Contrast Ratio: | 4000:1 | Processing: | 16bit |
---|---|---|---|
IP Rating: | IP65 | Refresh Rate: | >1920Hz |
Panel Material: | Die-casting Aluminum | Servicing: | Front/rear |
Viewing Angle: | 140° | Power Supply: | Meanwell |
Leads: | Nationstar | Panel Size: | 500x500x80mm |
Highlight: | outdoor led screen hire,events led display |

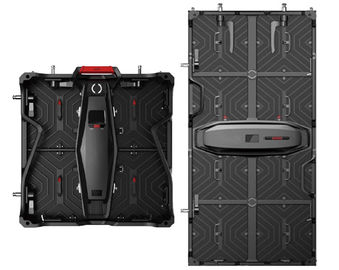

High Brightness Waterproof Outdoor Rental LED Display Screen For Advertising
Key Features:
• Fast Installation and Easy Maintenance, Front/rear service, No need tools;
• Slim, Light and Quiet, Fanless design;
• Superior Electrical Features;
• TUV certificated and Reddot Awarded.
Unsurpassed Color Uniformity
The unique color calibration process
Tight bin selection for LED wavelength
Deep black levels, contrast ratio 4000:1
Fast Installation and Easy Maintenance
Truss hanging and ground support both available
Cable-less between modules
Front and rear accessible
Tools free installation
Slim, Light Weight and Quiet
500mmx500mm or 500mmx1000mm cabinet,
80mm thickness
Fanless design
Superior Electrical Features
The dural signal backup port
UI LCD monitoring display indicates the status
Specifications:
BOR-I-3 | BOR-I-4 | BOR-I-5 | BOR-I-6 | |
Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
Pixel Configuration | SMD 1921 | SMD 2525 | SMD 2525 | SMD 2727 |
Pixel Density | 65536pixels/m² | 43264 pixels/m² | 28224 pixels/m² | 25600 pixels/m² |
Module Dimensions (W × H) (mm) | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 |
Panel Dimensions (mm) | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 |
NO .of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
Physical Resolution of Module (W × H) | 64×64/64×128 | 52×52/52×104 | 42×42/42×84 | 40×40/40×80 |
Physical Resolution of Panel (W × H) | 128×128/128×256 | 104×104/104×208 | 84×84/84×168 | 80×80/80×160 |
Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
Single Cabinet Weight | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel |
Processing | 16 bit | 16 bit | 16 bit | 16 bit |
Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000: 1 | 4,000: 1 | 4,000: 1 | 4,000: 1 |
Average Power Consumption | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel |
Max Power Consumption | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel |
Operating Temp/Humidity | -20ºC - 60ºC / 10% - 60% | -20ºC - 60ºC / 10% - 60% | -20ºC - 60ºC / 10% - 60% | -20ºC - 60ºC / 10% - 60% |
Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | >6000 nits | >6000 nits | >6000 nits | >6000 nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 |
Certification | CCC, CE, ETL,FCC | CCC, CE, ETL, FCC | CCC, CE, ETL,FCC | CCC, CE, |
