| Pixel Pitch: | 3.91mm, 4.81mm, 5.95mm | Module Size: | 250*250mm |
|---|---|---|---|
| Panel Dimention: | 500*500mm/500*1000mm | Cabinet Material: | Die-casting Aluminum |
| Cabinet Weight: | 9/15 Kg/panel | IP Rating: | IP65/IP54 |
| Brightness: | >4,500nits | Contrast Ratio: | 4000:1 |
| Expected Lifetime: | 100,000 Hrs | Warranty: | 2-5 Years |
| High Light: | events led display,led rental display |
||

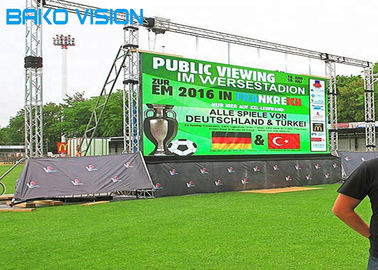

Outdoor Rental LED Display Stage Background P4.81 Advertising Video Wall for Event Advertising / Living Show
Rental LED Display Features
Unsuprassed Color Uniformity
♦ Unique color calibration process
♦ Tight bin selection for LED wavelength
♦ Deep black levels,contrast ratio 4000:1
Slim,Lighr Weight and Quiet
♦ 8.5kg per cabinet,75mm thickness
♦ 35% lighter than normal outdoor displays
♦ 500mm*500mm and 500mm*1000mm are compatible
Fast Installation and Easy Maintenance
♦ Truss hanging and ground support both available
♦ Cable-less between modules
♦ Hot swapping modules
All Weather Conditions Protection
♦ Outdoor waterproof with IP65
♦ High brightness adjustable according to environment change
Outdoor Movable LED Screen Parameters
| BOR-II-3 | BOR-II-4 | BOR-II-5 | BOR-II-6 | |
| Physical Pitch | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| Pixel Configuration | SMD1921 | SMD2525 | SMD2525 | SMD2727 |
| Pixel Density | 65,536 pixels/㎡ | 43,264 pixels/㎡ | 28,224 pixels/㎡ | 25,600pixels/㎡ |
| Module Dimensions (W*H)(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*75/500*1000*75 | 500*500*75/500*1000*75 | 500*500*75/500*1000*75 | 500*500*75/500*1000*75 |
| Physical Resolution of Module(W*H) | 64*64 | 52*52 | 42*42 | 40*40 |
| Physical Resolution of Panel(W*H) | 128*128/128*256 | 104*104/104*208 | 84*84/84*168 | 80*80/80*160 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 9/15 kg/panel | 9/15 kg/panel | 9/15 kg/panel | 9/15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 75/150W/panel | 75/150W/panel | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/500W/panel | 225/500W/panel | 225/500W/panel | 225/500W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >6,000nits | >6,000nits | >6,000nits | >6,000nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Max Staking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
