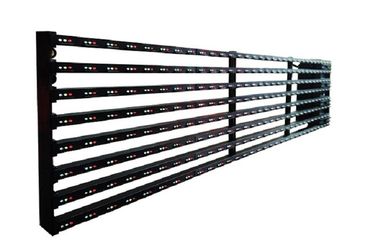

Outdoor LED Display Curtain High Transparent, High Brightness Fixed Waterproof for Ads Billboard
|Physical Pitch||31.25 mm||31.25 mm(H), 50 mm(V)|
|Pixel Density||1,024 pixels/m²||640 pixels/m²|
|Unit Size (W x H)(mm)||≥1500 x 250||≥1500 x 250|
|Physical Resolution of Unit ( H × V)||48 x 8||48 x 5|
|Weight||15kg /m²||9.6kg /m²|
|Processing||16 bit||16 bit|
|Colours||281 trillion||281 trillion|
|Contrast Ratio||2,000 : 1||2,000 : 1|
|Average Power Consumption||107 w/m²||67 w/m²|
|Max Power Consumption||329 w/m²||200 w/m²|
|Brightness||≥6,500 nits||≥4,000 nits|
|Refresh Rate||≥3,840 Hz||≥3,840 Hz|
|Horizontal Viewing Angle||160°||160°|
|Vertical Viewing angle||140°||140°|
|Expected Lifetime||100,000 Hrs||100,000 Hrs|
|Servicing||Front / Rear||Front / Rear|
|IP Rating (Front/Rear)||IP 67||IP 67|
|Operating Temp/Humidity||-30°- 60° C/10% - 90%||-30°- 60° C/10% - 90%|
|Storage Temp/Humidity||-40° - 85°C/10% - 95%||-40° - 85°C/10% - 95%|
High Transparency and High Brightness
20%-80% transparent rate, see through, suitable for glass wall mounting
Ultra Light Weight and Slim
10-18 kg/m² gross weight.
Easy to Install and save installation space
Various Installation Method

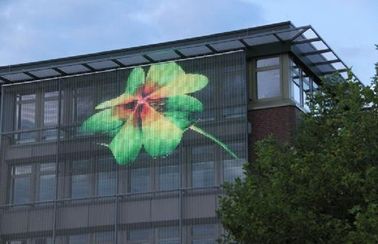

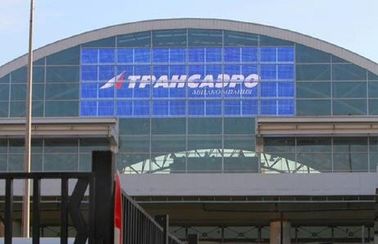

Case for Reference
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
