Product Details:
Payment & Shipping Terms:
|
| Pitch: | P10.4 | Led Type: | SMD1921 |
|---|---|---|---|
| Cabinet Size: | 1000*500mm | Brightness: | 1200nits |
| Powre Supply: | Meanwell | Contrller: | Linsn/Nova |
| Highlight: | clear led screen,see through led screens |
||

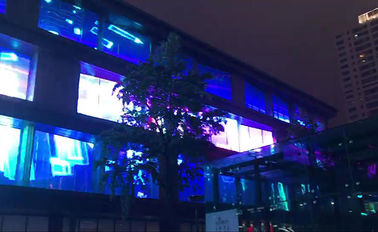

Light weight P10.4 Transparent led screens 100x50cm Panel for shopping window ads
P10.4 Transparent led screens Features:
1. Light-weighted: only 11kg per sqm;
2. Easy installation;
3. High transparency up to 70%;
4. Any shape size is avaible;
P10.4 Transparent led screens Parameters
| BG-10 | |
| Physical Pitch | 10.4x10.4mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 9216pixels/m² |
| Module Dimensions (WxH)(mm) | 500x125 |
| Panel Dimensions (WxH)(mm) | 1000x500 |
| NO. of Modules Per Panel(WxH) | 2x4 |
| Physical Resolution of Module(WxH) | 48x12 |
| Physical Resolution of Panel(WxH) | 96x48 |
| Panel Material | Aluminum |
| Single Cabinet Weight | <14kg/m² |
| Gray Scale | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2000:01:00 |
| Average Power Consumption | 140W/m² |
| Max. Power Consumption | 400W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz |
| Brightness | 1000~4200 nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| IP Rating(Front/Rear) | IP30 |
| Servicing | Rear |
| Scan Method | 1/2 or 1/4 Scan |
