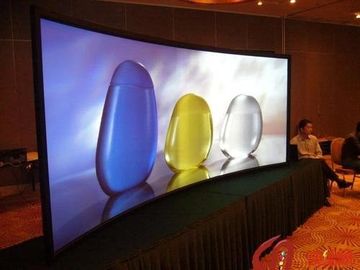

Excellent Thermal Design Indoor Fixed LED Display SMD P2.6 ODM / OEM Available
Product Details
| Driving Method: | 1/32Scan | Refresh Rate: | ≥1920Hz |
|---|---|---|---|
| Panel Material: | Die-casting | Physical Pitch: | 2.6mm |
| Servicing: | Front / Back | Brightness: | 900 -1,200nits |
| Highlight |
led video wall display,indoor led advertising scree |
||
Product Description
Indoor Fixed LED Display SMD P2.6 High Grayscale ODM and OEM Full Color Front Service and Back Service 4G
The cabinet is easy to install and disassemble, relying on its ultra-light design.
The images it displays have good color uniformity due to its high contrast ratio and high refresh rate.
In the production process, we strictly check each production detail to ensure the quality of the product.
The die-casting aluminum technology makes the screen body high toughness, high stability and not easy to deform.
The quick lock system,a quick lock on the upper, lower, left and right connections, which not only gets the cabinet a nice appearance but also achieves quick dis-assembly.
Excellent thermal design and performance.
The product is noise free so that there is no need an external fan or air conditioner.
The low power consumption and long life of the product can greatly save your cost.
Applications:
Widely used in Stage event,Advertising media,Concert, TV SHOW,Super mall, Entertainment,School,Government,Trading conversation,Commodity fair,Exhibition,Cinema,News conferences, Meeting room,Airport,Hotel,Station Hall and so on.
| Physical Pitch |
2.6mm
|
| Pixel Configuration | SMD2121 |
| Pixel Density |
147,456 pixels/m² 36,864 pixels/m |
| Module Dimensions (W × H) (mm) | 250 ×250 / 250 × 50 |
| Panel Dimensions (mm) | 500 × 500 × 80 / 500 × 1000 × 8 |
| NO .of Modules Per Panel (W × H) | 2 × 2 |
| Physical Resolution of Module (W × H) | 96 × 96 / 96 × 19 |
| Physical Resolution of Panel (W × H) | 192 × 192 / 192 × 38 |
| Panel Material | die-casting |
| Processing | 16 bit |
| Colors | 281 trillion |
| Contrast Ratio | 4,000 :1 |
| Average Power Consumption | 60 /120 W /panel |
| Max Power Consumption | 110 / 400 W/pane |
| Driving Method | 1/32Scan |
| Brightness | 900 - 1,200nits |
| Refresh Rate | ≥1920Hz |
| Horizontal Viewing Angle | 140° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100,000Hour |
| Operating Temp/Humidity | -10°C - 50 °C / 10% - 60 % |
| Storage Temp/humidity | -30 °C - 60°C / 10% - 60% |
| Max Stacking | 20 panel |
| Max Hanging | 18panel |
| Servicing | Front / Back |
| IP Rating (Front/Rear) | IP 40/ IP 21 |
| Certification | CCC, CE, ETL, FC |
