Product Details:
Payment & Shipping Terms:
|
| IP Rating (Front/Rear): | 100,000 Hrs | Brightness: | IP 54 |
|---|---|---|---|
| Processing: | 14 - 16 Bit | Colours: | 281 Trillion |
| Installation: | Hanging Up | ||
| High Light: | flexible led curtain display,soft led screen |
||

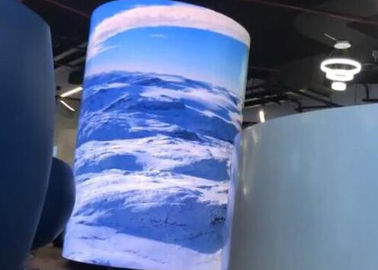

Light weight P4 flexible led display with nationstar leds for archiving irregular shape display
P4 flexible led display Description
Flexible LED Display Uses the flex LED screen technology, we can create a unique led video display solution such as a circular column, curved, waved shape LED screen.THe module is super thin, and light It completely breaks out of the traditional heavy cabinet and can be used in any complex installation environment.
P4 flexible led display Features
1. Fast Maintenance,with front maintenance design,maintenance efficiency is 10 times higher than tradtidional method,significantly saving time neede for maitenance.
2. High refresh rate, high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.
3. High quality, meet the request of international standard of CE, FCC,RoHs.
4. Assembling screen with soft led modules directly,saving time and effort,easy operation.
5. Module with small-unit and flexible design, makes possibility of more complicated shapes for the video show.
6.Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
7. Assembling screen with soft led modules directly, saving time and effort,easy operation.
8. No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
P4 flexible led display Parameter
| BS-4 | |
| Physicla Pitch | 4 mm |
| Pixel Configuration | SMD 2121 |
| Pixel Density | 62,500 pixels/m² |
| Module Dimensions (W*H)(mm) | 240*120 |
| Panel Dimensions (mm) | customized |
| Physical Resoulution of Modules (W*H) | 60*30 |
| Weight | 8.2 kg/m² |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000:1 |
| Average Power Consumption | 10 W |
| Max Power Consumption | 13 W |
| Brightness | >1,500 nits |
| Refresh Rate | >1,920 Hz |
| Scan Method | 1月8日 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| Srevicing | Front |
| IP Rating (Front/Rear) | IP 40 |
| Operating Temp/Humidity | -20ºC-60ºC/10%-90% |
| Storage Temp/Humidity | -40ºC-80ºC/10%-90% |
