50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
Product Details
| Pixel Pitch: | 4.81 | Pixel Density: | 43264 Pixels/m2 |
|---|---|---|---|
| LED Type: | SMD2525 | Cabinet Dimension: | 500x500mm |
| Cabinet Resolution: | 128*128pixels | Brightness: | 5,000nits |
| Viewing Angle(H/V): | 140°/140° | Power Consumption(avg.): | 600w/m2 |
| Highlight |
stage background led screen,concert led screen |
||
Product Description
50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
P4.81 Outdoor Stage Rental Display Features:
Outdoor LED display is widely used in various outdoor events, including airport information display, stadium advertisement and score board, concerts and performance stages, highway billboards, shopping malls, residential quarter boards etc.
We provide not only outdoor display screens and modules of different pixels, but also installation solutions based on our years of experience and participation of all sorts of programs for outdoor LED display.
Can I have a sample order for led cabinet
2. Why use an LED Screen instead of an LCD Screen?
LED screens are a completely different technology to LCD screens, designed for a different purpose. LCD screens are designed primarily for indoor close viewing on a small scale. LED screens are designed for large scale, high impact projects that can be used outdoors in bright sunlight.
3. Maximal Power Consumption for LED displays?
There are two types of driving methods for LED displays, which is the constant static driving method and the scan driving method. First let's explain how to calculate the maximal power consumption and average power consumption of a pitch 16mm LED display using constant static current driving.
Application case:

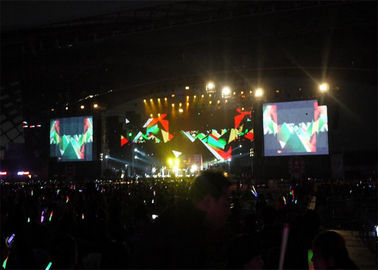

Widely used for lighting shows, concerts, wedding, events, shopping malls, entertainment and sport venues, schools, government, trade fair, exhibition, press conference, meeting rooms, cinemas, airports, hotels, station, stadium, and a variety of public places
P4.81 Outdoor Stage Rental Display Specification
| BOR-I-4 | |
| Physical Pitch | 4.81 mm |
| Pixel Configuration | SMD 2525 |
| Pixel Density | 43264 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 / 250×500 |
| Panel Dimensions (mm) | 500 × 500 × 80 |
| 500 × 1000 × 80 | |
| NO .of Modules Per Panel (W × H) | 2 × 2 |
| Physical Resolution of Module (W × H) | 52×52/52×104 |
| Physical Resolution of Panel (W × H) | 104×104/104×208 |
| Panel Material | Die-Casting Aluminum |
| Single Cabinet Weight | 9/ 15 kg/panel |
| Gray Scale | 14-16 bit |
| Colors | 281 trillion |
| Contrast Ratio | 4,000: 1 |
| Average Power Consumption | 75 /150 W/m² |
| Max Power Consumption | 225 /550 W/m²l |
| Operating Temp/Humidity | -20ºC - 60ºC / 10% - 60% |
| Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% |
| Refresh Rate | >1,920 Hz |
| Brightness | >5000 nits |
