Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.9mm | Pixel Density: | 65536 Pixels/m2 |
|---|---|---|---|
| LED Type: | SMD2525 | Cabinet Material: | Die Casting Aluminum |
| Ingress Protection(front/rear): | IP65/IP54 | Brightness: | >6500nits |
| Power Consumption(avg.): | 420w/m2 | Life Span: | ≥100000hrs |

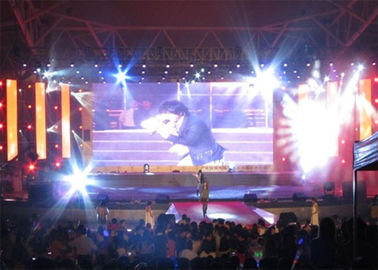

| Highlight: | stage background led screen,concert led screen |
||
Specification
| Model | ORA-3.9 |
| Pixel Pitch | 3.9mm |
| Pixel Density | 65536 pixels/m2 |
| LED Type | SMD2525 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500x500mm/500x1000mm |
| Cabinet Resolution | 128*128px/128*256px |
| Cabinet Weight | 8kg/14kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/8 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 420w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Outdoor LED Display series :
1. Automatic brightness control,super processing ability,strong colour restoration.
2. Support various interfaces and signal sources.
3. Advance digital control technology, excellent effect.
4. High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.
5. Antiseptic and durable, can be used outdoor in all weather.
LED module has easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system.
With full aluminum alloy structure for light weight and waterproof advantages, HJY outdoor LED display is an perfect external multimedia LED display system designed for changeable and adverse outdoor environment.
Quick and Easy Installation in 5 Seconds ,Fast lock for quick and easy installation.
Maximum support 50pcs hanging in a collum
