Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Application: | Advertising/Shows/Live Broadcast/Party/Sports Match/Park/Square/Stage |
|---|---|---|---|
| Brightness: | >5500nits | Viewing Angle(H/V): | 140°/140° |
| Power Consumption(avg.): | 250w/m2 | Power Supply: | AC 110/220±10% 50~60Hz |
| Life Span: | ≥100000 Hours | Pixel Failure: | <0.0003 |
| High Light: | truck mounted led screen,led advertising trailer |
||

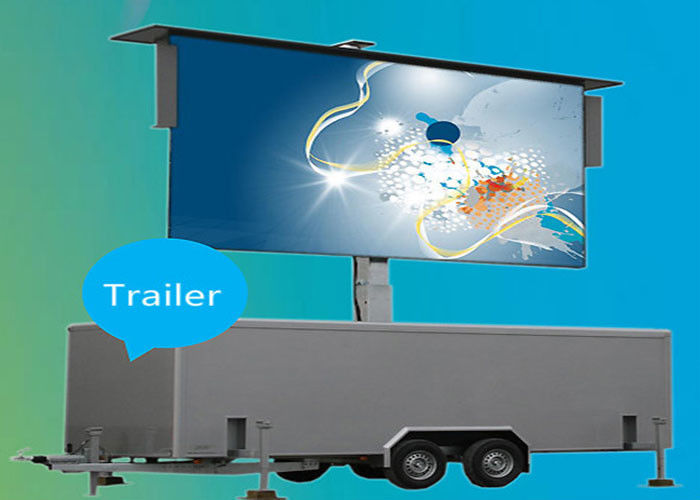

Outdoor Full Color Mobile LED Screen Trailer Vehicle LED Display Low Consumption For Advertising/Shows
Features
Details
| Pixel Pitch | 10mm |
| Pixel Density | 10000 px/m2 |
| LED Type | SMD3535/DIP346 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 1280*960mm |
| Cabinet Resolution | 128*96px |
| Cabinet Weight | 79kg |
| Cabinet Material | cold steel |
| Ingress Protection (front/rear) |
IP65/IP54 |
| Brightness | >5500nits/>6500nits |
| Viewing Angle(H/V) | 140°/140° / 120°/70° |
| Driving Method | 1/2 Scan / 1/4 Scan |
| Power Consumption(avg.) | 250w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
AC 110/220±10% 50~60Hz |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥100000 Hours |
| Pixel Failure | <0.0003 |
Images
Advantages
FAQ
How to Select a Led Display
Location is the most important factors for selecting the correct LED display.Different type of location such as rooftop,large billboards and stage backdrops or requires front access for servicing will require different led cabinets and modules.
Size:Once you have measured the height, width and depth of the space and availability, then you want to make sure the selected LED size (and number of cabinets, height, width & depth) can be accommodated.
Shape:determines if curve or column or flat screens are required.
Pitch:determines the contents of the display and the range of viewing.You need to predict how far away your viewers are from the display screen.
Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with
automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud
covers.
