Product Details:
Payment & Shipping Terms:
|
| Refresh Rate: | 2000Hz | Contrst Ratio: | 4000 : 1 |
|---|---|---|---|
| Panel Material: | Die -Casting | IP Rating (Front/Rear): | IP65/IP54 |
| Expected Lifetime: | 100,000Hrs | ||
| Highlight: | street led screen,outdoor waterproof led advertising panels |
||
High brightness of 5000nits P4 Outdoor Fixed LED Display with Nationstar Leds

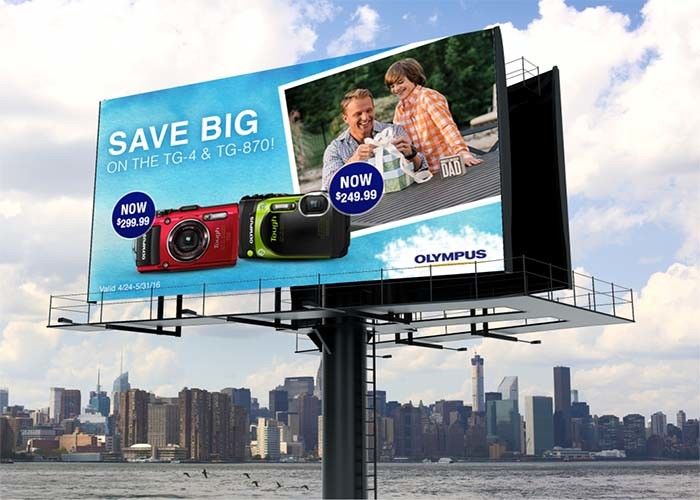

Outdoor fixed LED display screen is perfect for commercial advertising,stadium,goverment public anniuncement etc.It takes the advantage on brightness, seamless,color consistency pixel to pixel,energy saving,long life span etc. Also,it is more enviromental,it could change content to play everyday by software instead of changing the printing or plastic materials when you need to change the adverting banners.
P4 Outdoor Fixed LED Display Specs Features
1.Optional of convex shaped,concave shaped and wave shaped screens
2.High gray scale and high refresh rate at even low brightness
3.Black LED's offer high contrast ratios and sharp images quality
4.Wide viewing angle up to140° (Horizontal and Vertical)
5.16bit(highest possible) color processing technology
6.Standard cabinet with seamless joint.
7.The cabinet can be operate in all-weather for its slim design and waterproofing that with a protection level of class IP65 in front and IP54 in back.
Aging Test of Screen
Solutions
P4 Outdoor Fixed LED Display Specs
| BOF-B-4 | |
| Physical Pitch | 4 mm |
| Pixel Configuration | SMD 1818 |
| Pixel Density | 62,500 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 80 × 40 |
| Physical Resolution of Panel (W × H) | 240 × 240 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/8 Scan |
