Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4.8mm | Pixel Density: | 43264 Pixels/m2 |
|---|---|---|---|
| LED Type: | SMD2727 | LED Configuration: | 1R1G1B |
| Cabinet Dimension: | 500x500mm/500x1000mm | Cabinet Resolution: | 104*104px/104*208px |
| Viewing Angle(H/V): | 140°/140° | Driving Method: | 1/13 Scan |
| High Light: | stage background led screen,concert led screen |
||
Outdoor P4.8 4.8mm Stage Rental LED Display IP65 Gray Scale 16bit LED Type SMD2525 High Contrast Ratio
HD full color 4.8mm outdoor Rental led display:
1.thin and light design,one person can handle the installation;
2. 500x1000mm big panel, speedily and easily mounting, perfect 16:9 colorful image;
3. Ultra thin body, Die-casting aluminum structure, high-accuracy connection, error<0.1mm;
4. Natural aluminum heat conduction design (no-cooling fan),quiet world;
5.Multi-layer circuit PCB, uniform current distribution, low power consumption, fast heat dissipation, prolongs the life of the screen

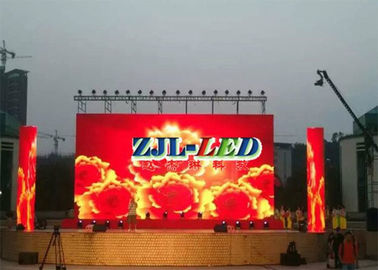

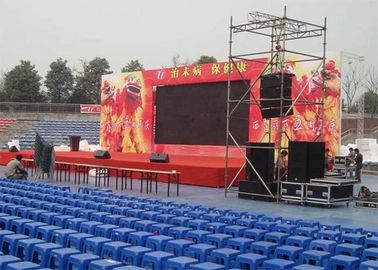

Applications:
concerts, exhibitions, stage,events,bar and party etc.
Specification
| Model | ORA-4.8 |
| Pixel Pitch | 4.8mm |
| Pixel Density | 43264 pixels/m2 |
| LED Type | SMD2727 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500x500mm/500x1000mm |
| Cabinet Resolution | 104*104px/104*208px |
| Cabinet Weight | 8kg/14kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/13 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 420w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
