Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 12.5mm | Pixel Density: | 6400 Pixels/m2 |
|---|---|---|---|
| LED Type: | SMD3528 | LED Configuration: | 1R1G1B |
| Cabinet Dimension: | 400*800mm | Cabinet Resolution: | 32*64pixels |
| Cabinet Weight: | 8kg | Gray Scale: | 16bit |
| High Light: | stage background led screen,concert led screen |
||
High Resolution Stage Rental LED Display Gray Scale 16bit Pixel Failure Less than 0.0003
Product feature
1. Thanks to the SMD triad technology, the screen is capable of wide viewing angle, smoother surface and stability.
2. Seamless splicing.
3, High gray level and lower brightness delivers good display performance and vivid image.
4. Quick installation and easy maintenance, front or rear maintenance.
Application

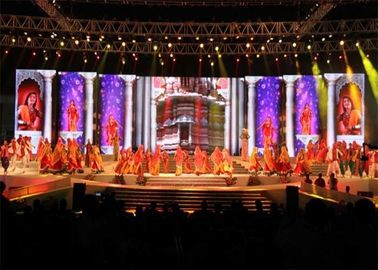

Indoor stage, Banks, Stock exchange centers, Bus station, Theme park, Airport, Commercial advertising, Mobile media.
Specification
| Model | IRD-12.5 |
| Pixel Pitch | 12.5mm |
| Pixel Density | 6400 pixels/m2 |
| LED Type | SMD3528 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 400*800mm |
| Cabinet Resolution | 32*64pixels |
| Cabinet Weight | 8kg |
| Cabinet Material | aluminum |
| Ingress Protection(front/rear) | IP40/IP21 |
| Brightness | >1200nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/4 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 220w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Why choose us?
1.A Division I with a number of national patents , providing customers with one-stop service DIY . Trust us: "You can think of, let us help you achieve ."
2.In the LED industry can help undefeated enterprise of its own business management, Corrente its diversified business philosophy, group management mode protect each display item excellent quality, high-quality service for customers to worry about lifting .
3.has the largest number of line in the forefront of modern production line, protection LED display can produce more than 6000 square meters, sufficient inventory to solve the customer 's urgent needs.
4.throughout the provinces and overseas service team allows you to buy the rest assured that with the comfortable .
