Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center

Certification
China Shenzhen Bako Vision Technology Co., Ltd certification
China Shenzhen Bako Vision Technology Co., Ltd certification
Customer Reviews
I am very satisfied with the project of Bakovision, and I have decided to cooperate with them next time.

—— Mrs Emilia Scarlett

The production technology of Bakovision is top 5 in led display industry.

—— Mr Richard Thompson

When I visited the factory of Bakovision, I was impressed by their workshop environment.Trust Bakovision.

—— Mr Amos Aaron

The enthusiastic service from Bakovision peoples makes me feel that we are not just business partners but also friends.

—— Mrs Katherine Grady

The company are recommended by friends.They help me solved the problem.

—— Mr Baron Elvis

I am very happy to build a long-term cooperation with Bakovision. Their products have never let me down.

—— Mr Blithe Gavin

I'm Online Chat Now

Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center

China Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center supplier
Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center supplier Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center supplier Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center supplier

Large Image :  Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center

Product Details:

Place of Origin: China
Brand Name: Bakovision
Certification: CE EMC UL RoHS
Model Number: P1.66

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: Negociation
Packaging Details: wooden box/flight case
Delivery Time: 20-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000 sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 1.66mm Pixel Density: 360000 Px/m2
LED Type: SMD1010 LED Configuration: 1R1G1B
Cabinet Material: Die-casting Cabinet Weight: 4.6kg
Viewing Angle(H/V): 140°/140° Driving Method: 1/30 Scan
High Light:

shopping mall led display

,

modular led display

Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center





P1.8 HD Led Display Features:

1. High gray scale under low brightness :Adjustable(>800nit) brightness not only meets the brightness requirements of indoor LED display screen, but also maintain the delicate and clear image by 16 bit gray level.Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor.



2. Wide viewing angle:Whether sitting in a spacious or narrow room, the horizontal and vertical viewing angles had reach 140 degrees, which greatly meets the viewing needs of the audience in different directions.The images effect will not change largely in the range.



3. Excellent thermal management:In a enclosed or Semi closed space, heat dissipation are very important, and the unique design allows this product have an excellent thermal management.We also add a mask to the surface, which due to heat dissipation, and focus light, to achieve better viewing effect.



4. Energy-saving:Constant voltage chip driving reduces the power consumption and prompts the stability. The power consumption per square meter is about 220W.



5. Lightweight and seamless:Ultra-lightweight box, it is easier and faster to operate and install, so it can save labor and time costs.



P1.8 HD Led Display Specs



  UHD-1.875
Physical Pitch 1.87mm
Pixel Configuration SMD 1010
Pixel Density 286,225 pixels/m²
Module Dimensions (W × H) (mm) 150 × 168.75
Panel Dimensions (mm) 600 × 337.5
NO.of Modules Per Panel (W × H) 4 × 2
Physical Resolution of Module (W × H) 80 × 90
Physical Resolution of Panel (W × H) 320 × 180
Panel Material Die-casting
Single Cabinet Weight 6 kg/panel
Gray Scale 16 bit
Colours 281 trillion
Contrast Ratio 4,000 :1
Average Power Consumption ≤300 W/m²
Max Power Consumption ≤600 W/m²
Brightness 600~800 nits
Refresh Rate >2,880Hz
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime ≥100,000 Hrs

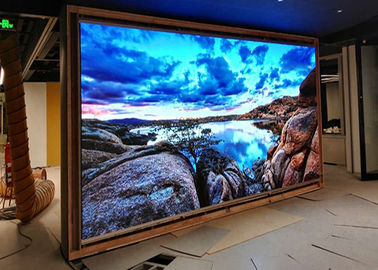

P1.8 HD Led Display View

Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center 0Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center 1Front Access P1.8 HD Led Display 600x337.5mm panel for Commanding Center 2

Services

1. Warranty

1)  We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.

2) We will provide maintenance for a lifetime and charge for the raw materials only.



2. Technology Training

1) We provide the technology training for free, which contains the installation of software and hardware, as well as the daily operation and troubleshooting of the LED display.

2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.



3. Certification

We provide the operation manual and all kinds of certification such as CE, RoHS EMC UL and so on.



4. Package&Shipment

1) Usually, we will ship within 20-25 working days after the customer place an order, but the actual arrival time is affected by transportation environment and other aspects.

2) In general,our products are packed in wooden boxes and flight case.
