| Pixel Pitch: | 6.67mm | LED Type: | SMD2727 |
|---|---|---|---|
| Gray SCale: | 16bit | Refresh Rate: | >1500Hz |
| Brightness: | >5500nits | Life Span: | ≥50000hrs |
| High Light: | street led screen,outdoor waterproof led advertising panels |
||
Outdoor Full-Color Advertising Display Waterproof P6.67 SMD2727 16Bit Seamless

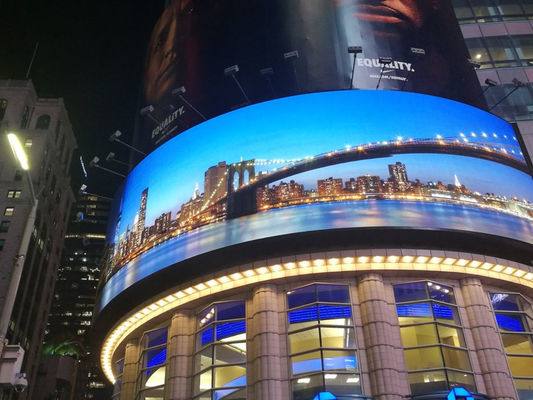

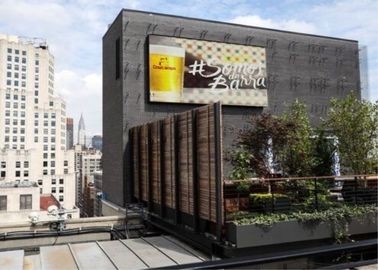

Mainly for outdoor advertising, information publishing, journalism and communication in some places, such as cultural square, traffic arteries, stations, terminals, information centers, entertainment venues, shopping, centers, commercial city and etc.
Key Specifictions
1. High brightness SMD3535 LED is used for outdoor LED display, keeps the display content visible even if facing the strong sunshine directly.
2. Weatherproof design, completely outdoor use.
3. High color uniformity and clear image can bring you a vivid audio visual effect.
4. Easy for assembling and connection with the connector added.
5. Optional of convex shaped,concave shaped and wave shaped screens
6. Standard cabinet achieves seamless and smooth assembling overall the display.
7. The cabinet can be operate in all-weather for its slim design and waterproofing that with a protection level of class IP65 in front and IP54 in back.
8. Easy installment and low maintenance cost
| Model | BOF-6 |
| Pixel Pitch | 6.67mm |
| Pixel Density | 22376pixels/m2 |
| LED Type | SMD2727 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 960mm*960mm |
| Cabinet Resolution | 144*144pixels |
| Weight | 65kg |
| Cabinet Material | cold steel |
| Ingress Protection (front/rear) |
IP65/IP54 |
| Brightness | >5500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/4 scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 250w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span |
≥50000hrs |
Factory
Package
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Bako Vision can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
FAQ
Why choose Bako Vision?
1),Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system and play a variety of information like video, word, flash, music, clock, graph etc.
2),High brightness and support brightness automatically adjustment.
3),Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon;
4),Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system;
5),Rich outdoor full color LED display screen engineering experience both in domestic and international market.
6),Well before, in,after-service.all for our customer reassurance.
