Product Details:
Payment & Shipping Terms:
|
| Tube Chip Color: | Full Color | Specification: | CE, Rohs, ISO, SGS, FCC, |
|---|---|---|---|
| LED Type: | SMD3535 | Display Type: | LED Video Display |
| Refresh Rate: | ≥ 1500Hz | Gray Scale: | 16bit |
| Power Supply: | AC 110/220±10% 50~60Hz | Life Span: | ≥100000 Hours |
| High Light: | truck mounted led screen,led advertising trailer |
||
Applications
Mobile Truck LED Display is being an important advertising media for outdoor events and advertising campaign on basis of its unique advanced structure feature.It’s known as truck mounted LED display and trailer mounted LED screen.The products are widely use for advertising,shows,square,concert, sporting event, festival, corporate gathering or charitable event,Grand Theater, large song and dance party, fashion show.
Features
1. High brightness: With a brightness of over 6,500 nits, this mobile screen ensures the audience a clear images even in direct sunlight or in dark places.
2. Wide viewing angle: The design of viewing angle of 140 degrees(both horizontally and vertically )is also a bright spot that in order to meet the audience of different viewing distances, which greatly increasing the effect.
3. Movable advertising:The biggest advantage of the mobile led screen is the movable feature.And it can be adjusted At any time according to the way you play and the audience to achieve the best publicity effect.
4. Easy operation: The mobile LED screen trucks are very quick to setup, and are completely self-contained allowing for extreme flexibility.Truck LED display adopt our ultra slim LED screen cabinet to realize light weight requirement,so it would be easier and more secure to move it.
5. Customized available: Cabinet size and materials can be customized according different projects.Our mobile LED screen trucks are very quick to setup, and are completely self-contained allowing for extreme flexibility.
Details
| Pixel Pitch | 10mm |
| Pixel Density | 10000 px/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 960*960mm |
| Cabinet Resolution | 128*96px |
| Cabinet Weight | 60kg |
| Cabinet Material | cold steel |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/4 Scan |
| Power Consumption(avg.) | 275w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10%,50~60Hz |
| Temperature(operating/storage) | -40℃ - 60℃ |
| Humidity(operating/storage) | 10%~90%RH/10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥100000 Hours |
| Pixel Failure |
<0.0002 |

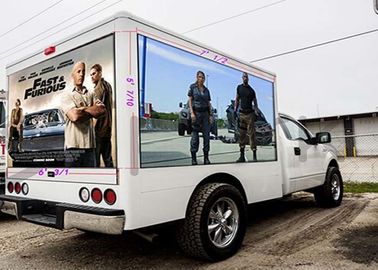

Case Images
Services
1. We can offer customization service for customized products and can provide onsite installation and testing service.
2. We provide 2 years warranty and free repair service for our products sold.
3. We also provide free training to customers' engineer.
Tips
1. Payment:We accept the L/C,T/T,Western Union.
2. Shipment: We will ship within 20-25 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
3. Package:We usually pack the product in a wooden box or flight case.
